Swagelok Co.
Tube Fitting Adapter Female NPT
Material: 316 SS, Tube OD: 1-1/2”, Connection 2: Female NPT 1-1/2”
Tube fitting adapter female NPT to compression tube stub.
·
Tube OD
1-1/2”
·
Connection 2
Female NPT 1-1/2”
·
Material
316 SS
·
Packaging Option
·
Material Standards
ASTM A276, ASME SA479, EN 1.14401
·
Thread Specifications
ASME B1.20.1, SAE AS71051
·
Packaging Remarks

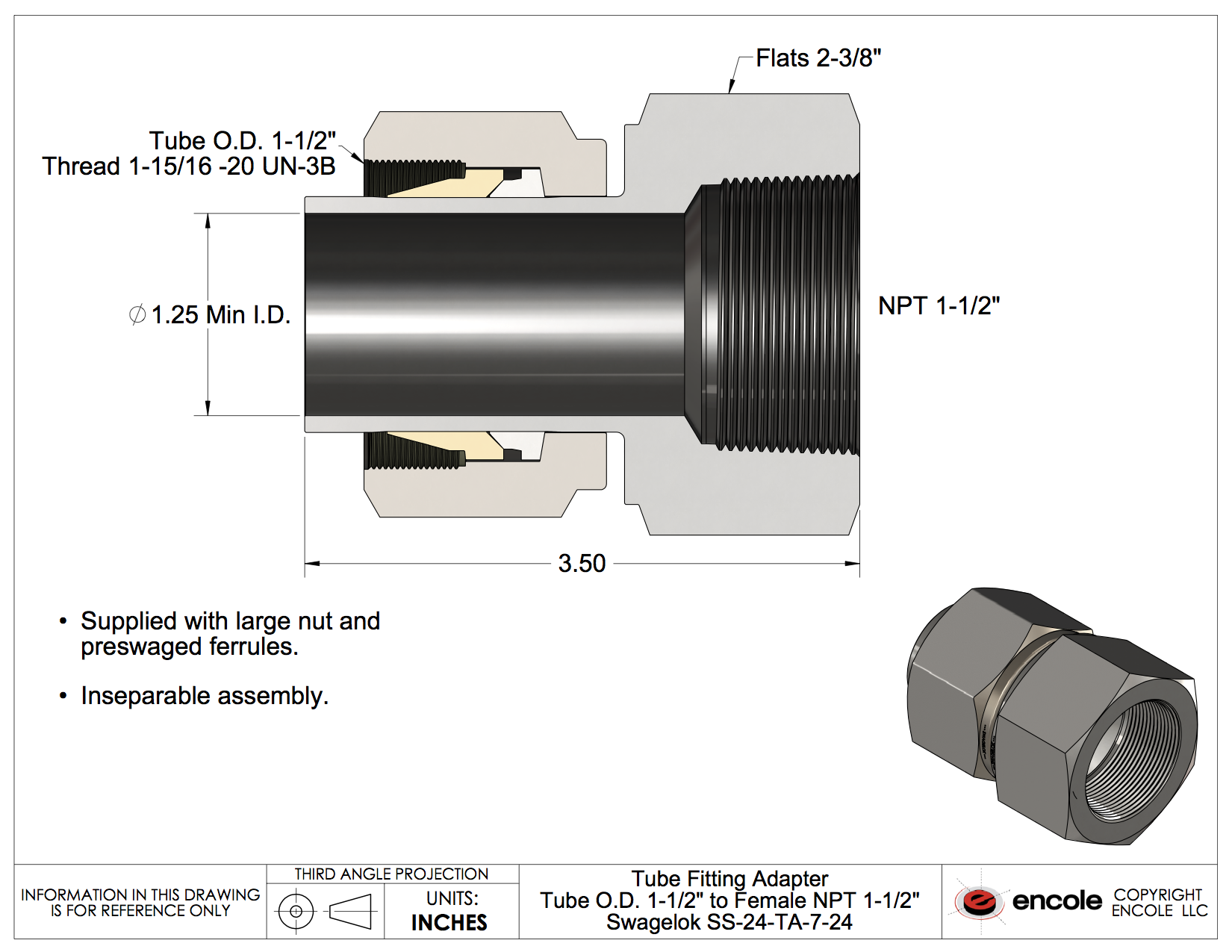

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 997E51046
Manufacturer's part number:
SS-24-TA-7-24
SS-24-TA-7-24
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
