Swagelok Co.

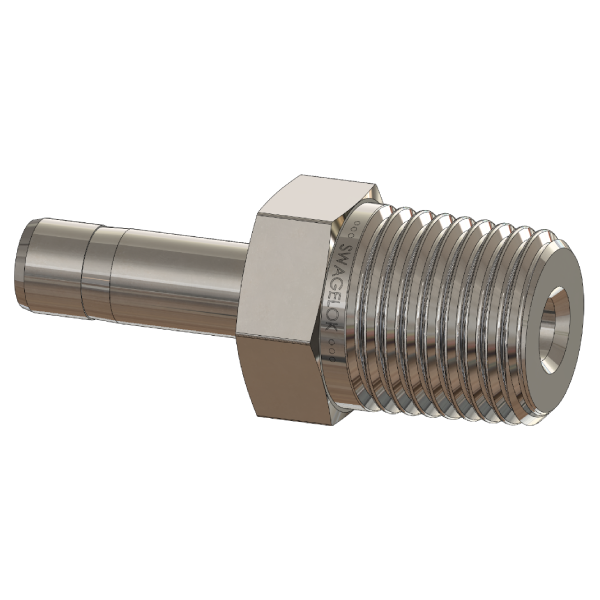

Tube Adapter, ISO/BSPT Tapered Thread Tube Fitting
Material: 316 SS, Tube OD: 6 mm, Connection 2: BSPT 1/4”
Tube fitting adapter with a compression tube stub on one end and BSPT thread on the other end. BSPT thread conforms to the British Whitworth Standard.
·
Tube OD
6 mm
·
Connection 2
BSPT 1/4”
·
Material
316 SS
·
Packaging Option
·
Material Standards
ASTM A276, ASME SA479, EN 1.14401
·
Thread Specifications
ISO 7, BS EN 10226-1, JIS B0203
·
Packaging Remarks

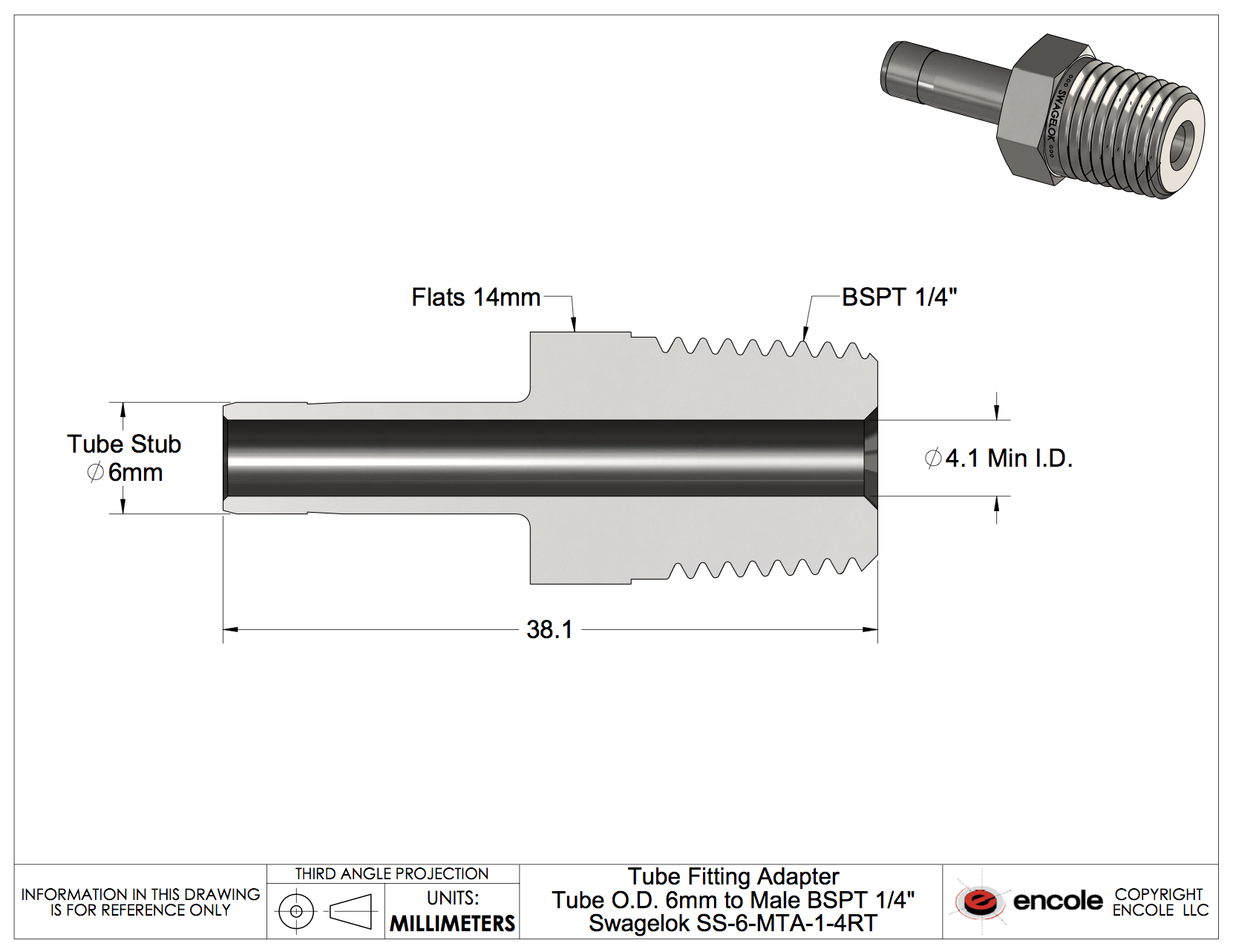

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 992E61026
Manufacturer's part number:
SS-6-MTA-1-4RT
SS-6-MTA-1-4RT
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ RFQ
