Swagelok Co.
Tube Adapter, NPT Tube Fitting, Metric Size
Material: 316 SS, Tube OD: 30 mm, Connection 2: NPT 1”

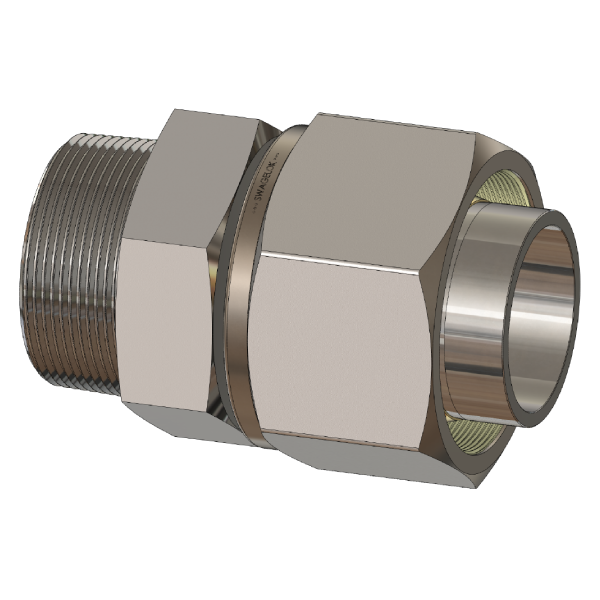

Male tube adapter with a compression tube on one end and male NPT thread on the other end.
·
Tube OD
30 mm
·
Connection 2
NPT 1”
·
Material
316 SS
·
Packaging Option
·
Material Standards
ASTM A276, ASME SA479, EN 1.14401
·
Thread Specifications
ASME B1.20.1, SAE AS71051
·
Packaging Remarks

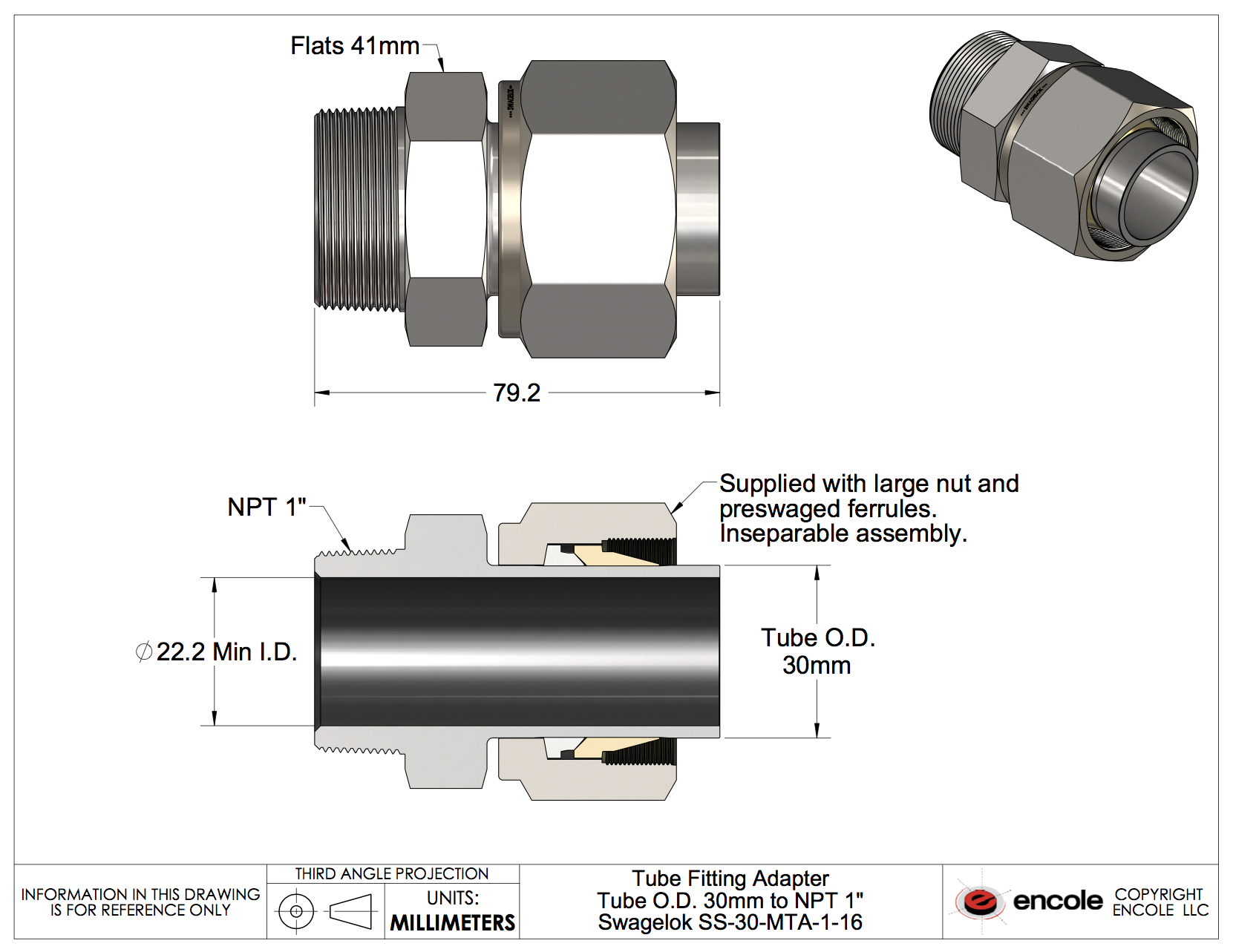

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 991E38027
Manufacturer's part number:
SS-30-MTA-1-16
SS-30-MTA-1-16
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
