Female NPT Branch, Tube Fitting Tee
Material: 316 SS, Tube OD: 16 mm, Tube OD: 16 mm, Connection 2: Female NPT 1/2”, Packaging Option: Standard packaging
Tube fitting tee with female NPT thread on the Branch end (perpendicular to the tee). The ends on the Run (in-line with the tee) are identical.
Packaging Option:
·
Tube OD
16 mm
·
Connection 2
Female NPT 1/2”
·
Material
316 SS
·
Material Standards
ASTM A182, ASME SA182, EN 1.4401
·
Thread Standards
ASME B1.20.1, SAE AS71051
·
Run Union
Tube OD size is on the Run (in-line of the Tee). Identical ends.
·
Adapter Branch
Connection 2, Female NPT, is on the Branch (perpendicular to the Tee).
·

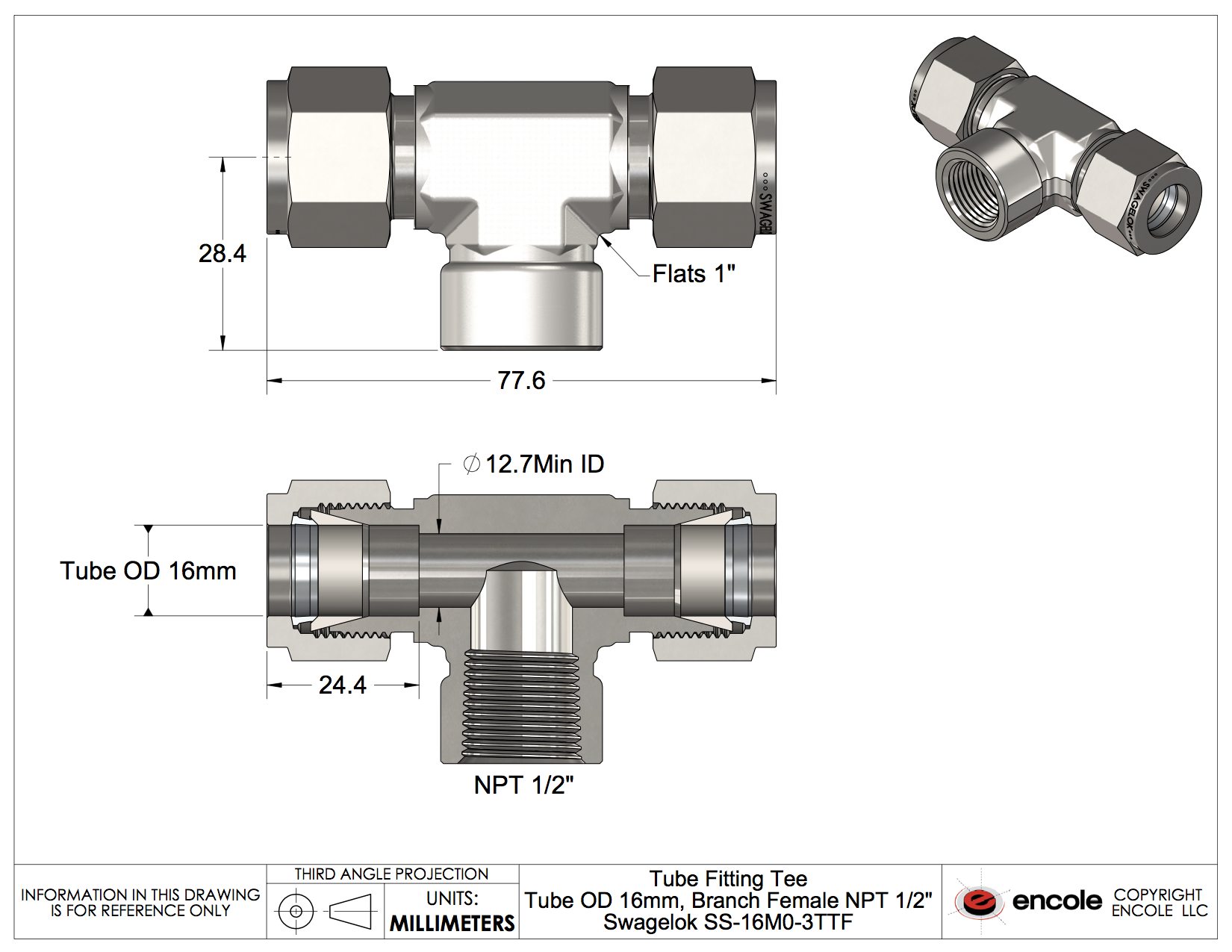

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 987E22022
Manufacturer's part number:
SS-16M0-3TTF
SS-16M0-3TTF
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ RFQ
