Swagelok Co.

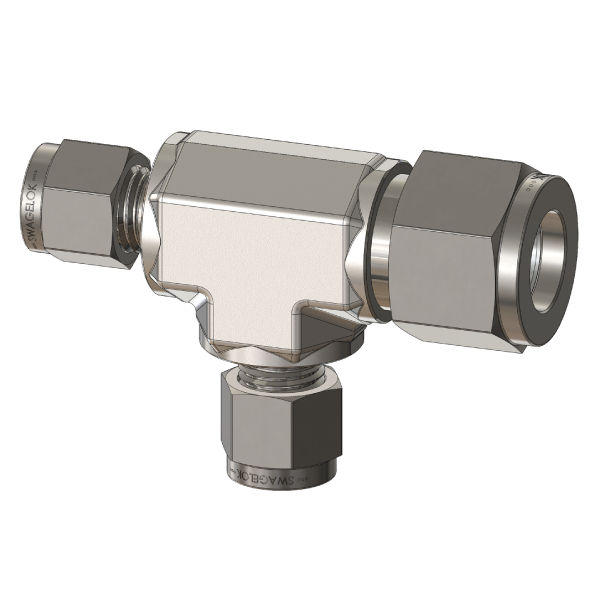

Union Branch and Run, Tube Fitting Reducing Tee
Material: 316 SS, Tube OD: 3/4”, Connection 2: 3/8”, Packaging Option: Standard packaging
Tube fitting reducing tee where the ends on the Branch (perpendicular to the tee) and one end of the Run are identical. The two ends on the Run (in-line of the tee) are of different fractional sizes.
Packaging Option:
·
Tube OD
3/4”
·
Connection 2
3/8”
·
Material
316 SS
·
Material Standards
ASTM A182, ASME SA182, EN 1.4401
·
Reducing Run
Connection 2 is on the Run (in-line of the Tee) and on the Branch (perpendicular to the Tee).
·
Reducing Branch
Reduced Run and the Branch are identical ends.
·

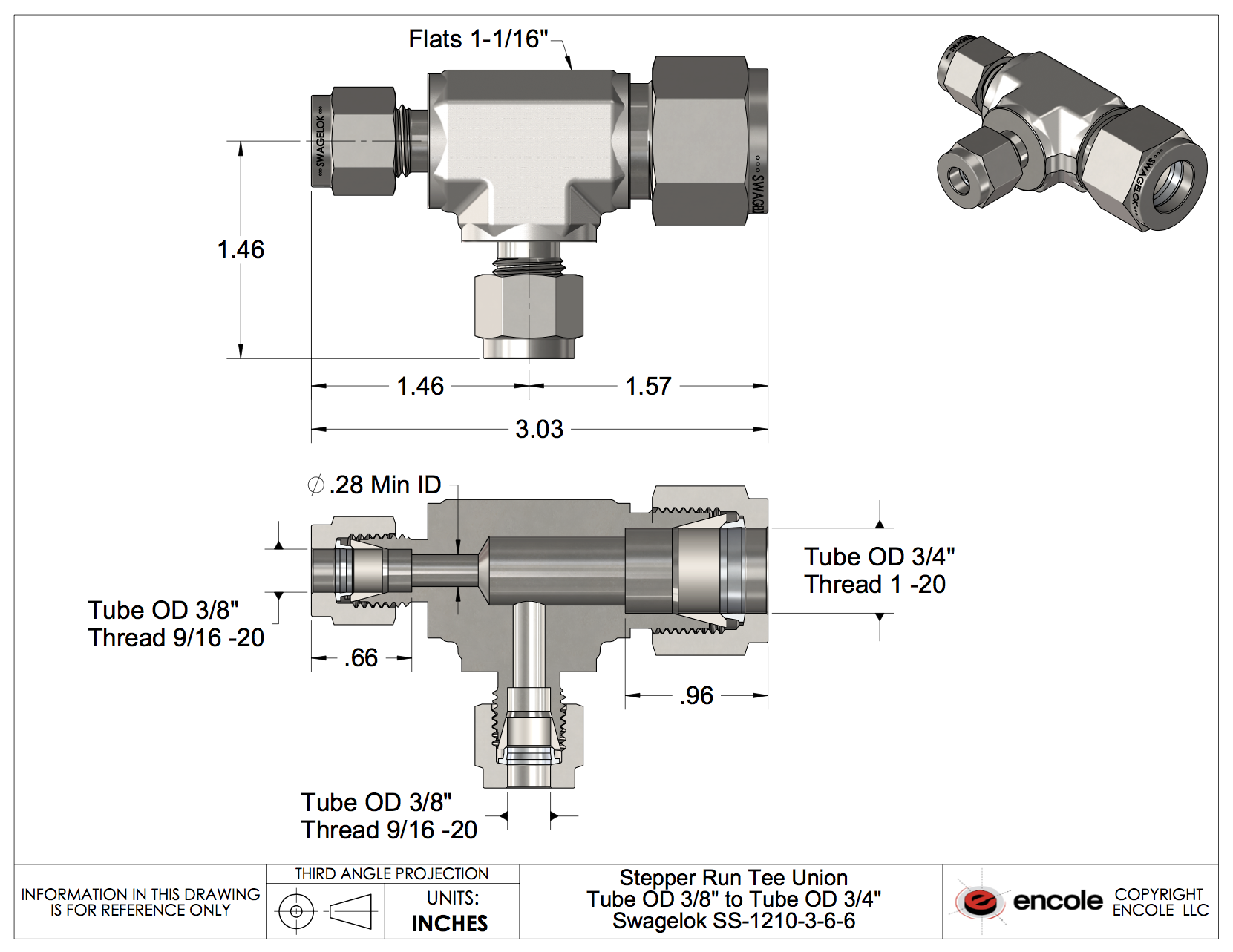

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 977E303
Manufacturer's part number:
SS-1210-3-6-6
SS-1210-3-6-6
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ RFQ
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
