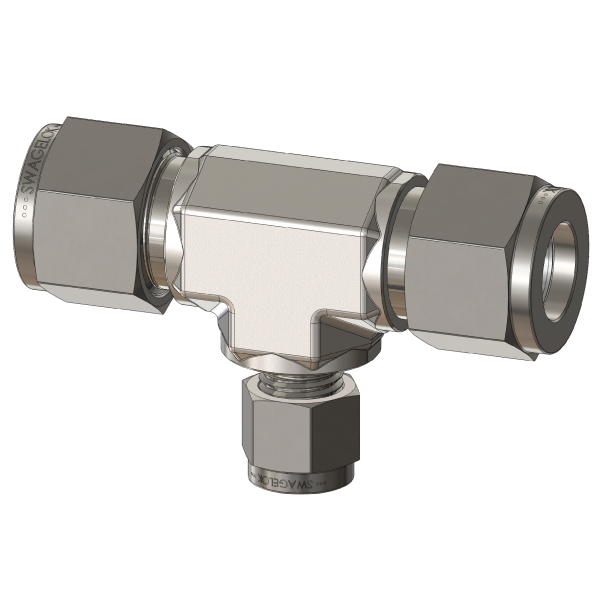

Metric Size Union Run, Tube Fitting Reducing Branch Tee
Material: 316 SS, Tube OD: 8 mm, Tube OD: 8 mm, Connection 2: 6 mm, Packaging Option: Standard packaging
Tube fitting reducing tee where the ends on the run (parallel to the tee) are identical. The end on the branch (perpendicular) is a different fractional size from the run. Metric size.
Packaging Option:
·
Tube OD
8 mm
·
Connection 2
6 mm
·
Material
316 SS
·
Material Standards
ASTM A182, ASME SA182, EN 1.4401
·
Union Run
Tube OD Size is on the Run (in-line of the Tee).
·
Branch
Connection 2 is the on the Branch (perpendicular to the Tee).
·

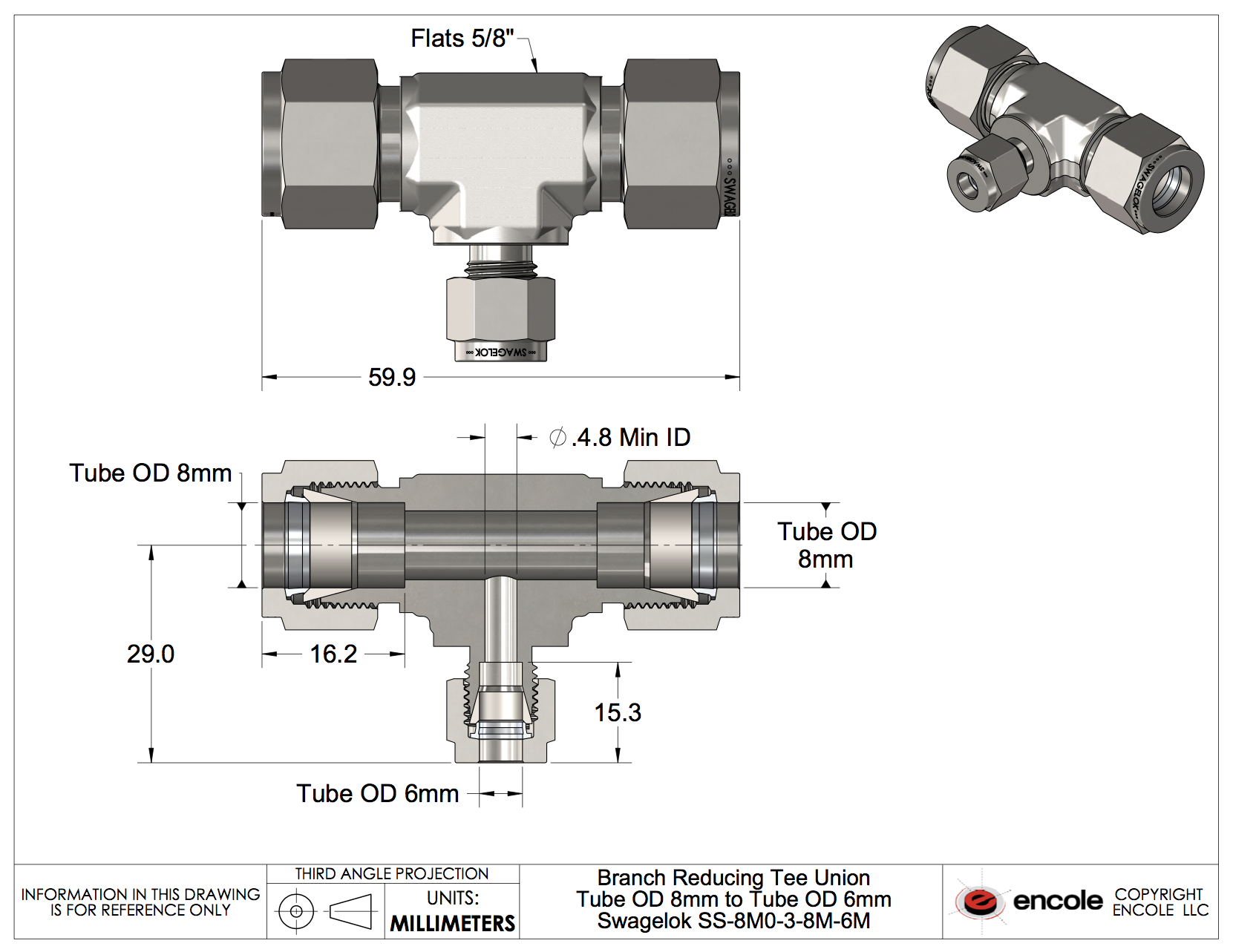

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 975E902
Manufacturer's part number:
SS-8M0-3-8M-6M
SS-8M0-3-8M-6M
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ RFQ
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
