Swagelok Co.
Positionable 45-Degree Tube Fitting Elbow SAE/MS Straight Thread
Material: 316 SS, Tube OD: 3/4”, Connection 2: Thread 1 1/16-12, Packaging Option: Standard packaging

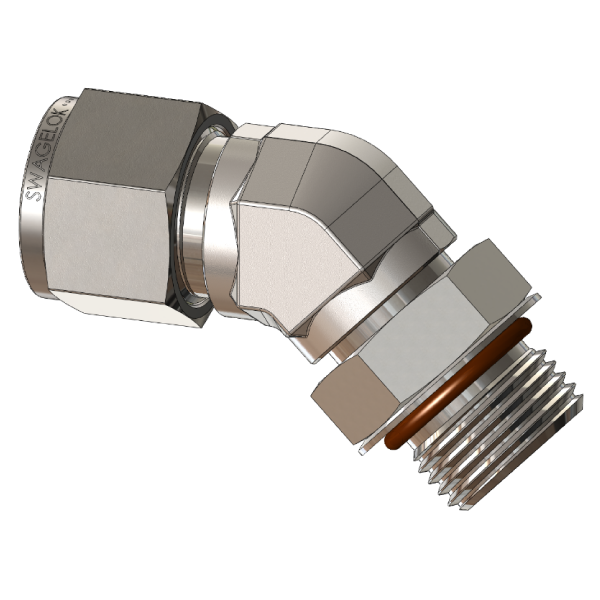

45-degree tube fitting positionable elbow with a straight SAE/MS thread. The fitting can be freely rotated around the bore axis and secured with the included nut and a washer. The fitting comes with a 70-durometer Buna-N O-ring.
Packaging Option:
·
Tube OD
3/4”
·
Connection 2
Thread 1 1/16-12
·
Material
316 SS
·
Material Standards
ASTM A182, ASME SA182, EN 1.4401
·
Thread Specifications
ASME B1.1
·
O-ring
Included O-ring is 70 durometer Buna-N.
·

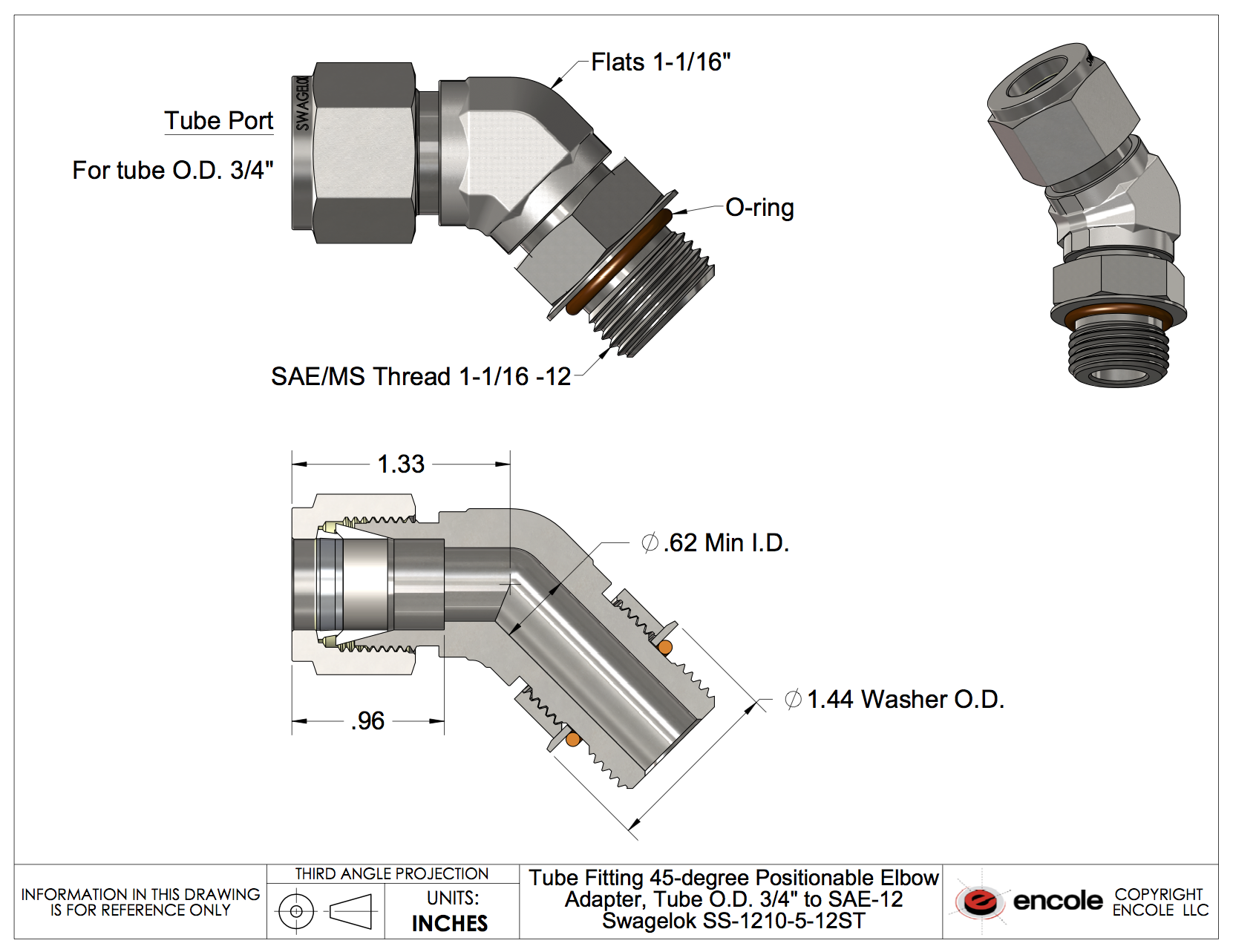

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 971E504
Manufacturer's part number:
SS-1210-5-12ST
SS-1210-5-12ST
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
