Swagelok Co.
90-Degree Elbow Metric Tube Fitting, NPT
Material: 316 SS, Tube OD: 38 mm, Connection 2: NPT 1-1/2”, Packaging Option: Standard packaging

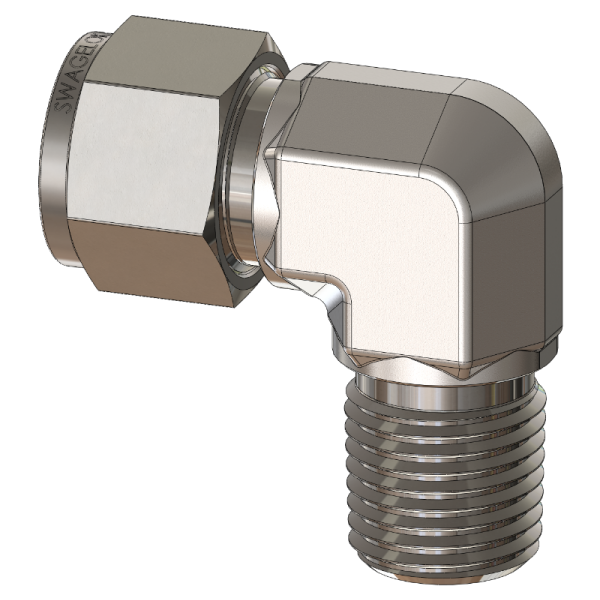

Male NPT 90-degree metric tube fitting elbow in stainless steel.
Packaging Option:
·
Tube OD
38 mm
·
Connection 2
NPT 1-1/2”
·
Material
316 SS
·
Material Standards
ASTM A182, ASME SA182, EN 1.4401
·
Thread Specifications
ASME B1.20.1, SAE AS71051
·

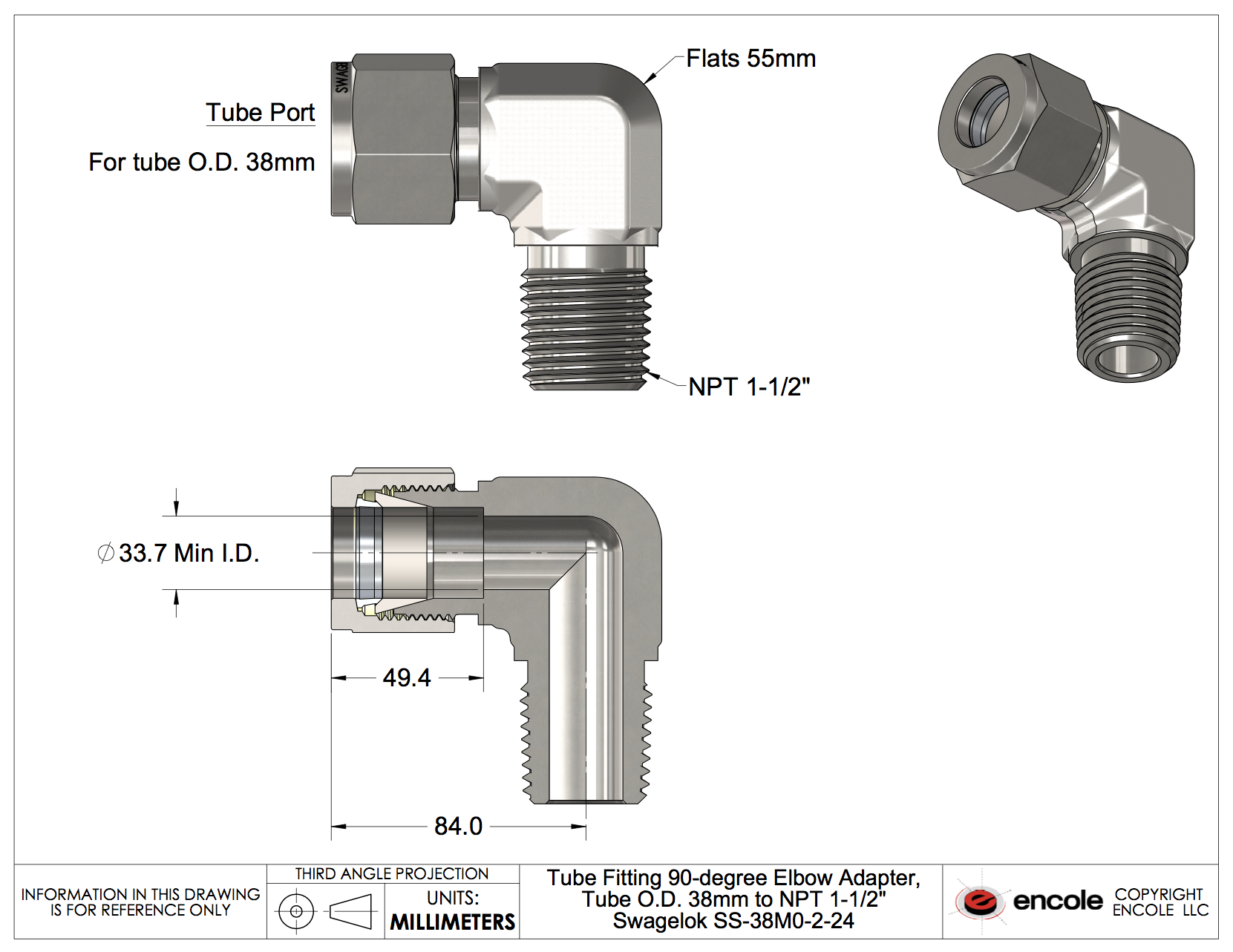

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 961E36036
Manufacturer's part number:
SS-38M0-2-24
SS-38M0-2-24
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
