Swagelok Co.

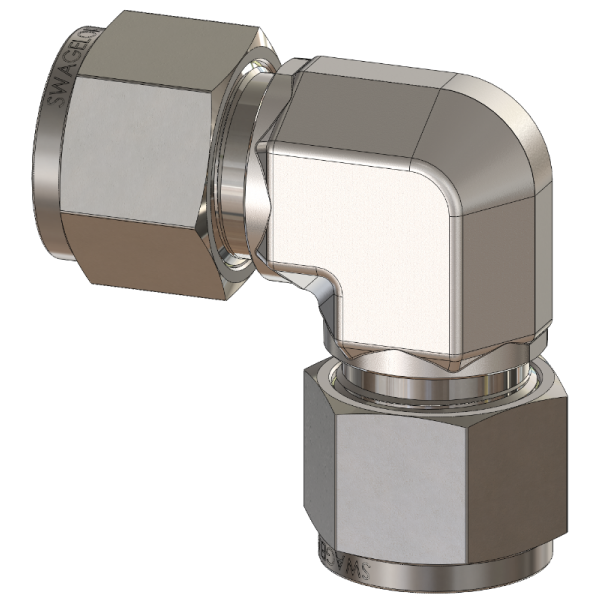

90-Degree Elbow Union Tube Fitting, Metric Size
Material: 316 SS, Tube OD: 18 mm, Packaging Option: Standard packaging
90-Degree metric elbow union, where both ends are identical compression tube sockets of metric size.
Packaging Option:
·
Tube OD
18 mm
·
Material
316 SS
·
Material Standards
ASTM A182, ASME SA182, EN 1.4401
·

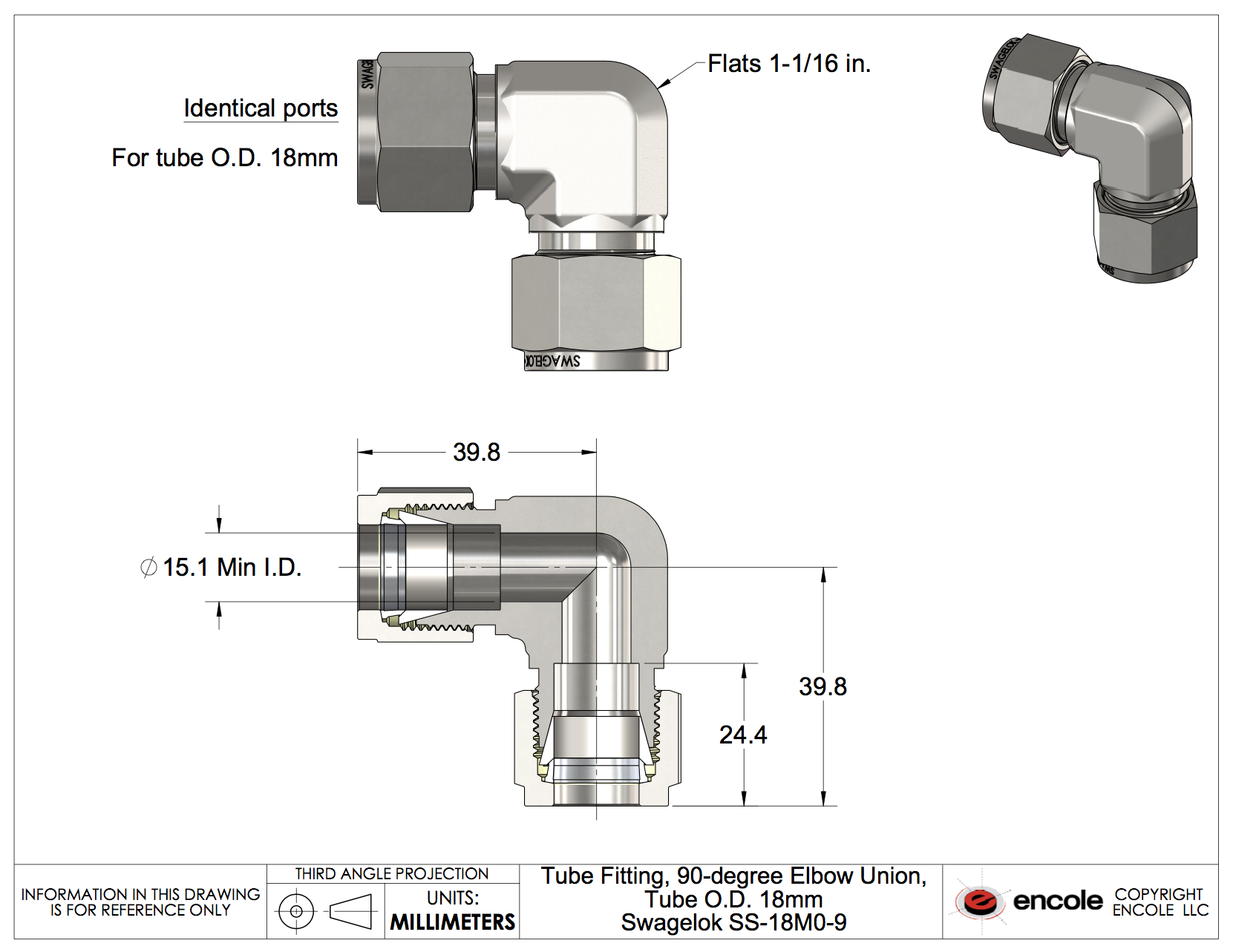

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 959E19010
Manufacturer's part number:
SS-18M0-9
SS-18M0-9
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
