Swagelok Co.
Port Connector Tube Fitting, Fractional Size
Material: 316 SS, Tube OD: 1-1/2”, Packaging Option: Standard packaging
Port connector from male tube to compression socket ferrule.
Packaging Option:
·
Tube OD
1-1/2”
·
Material
316 SS
·
Material Standards
ASTM A276, ASME SA479, EN 1.14401
·

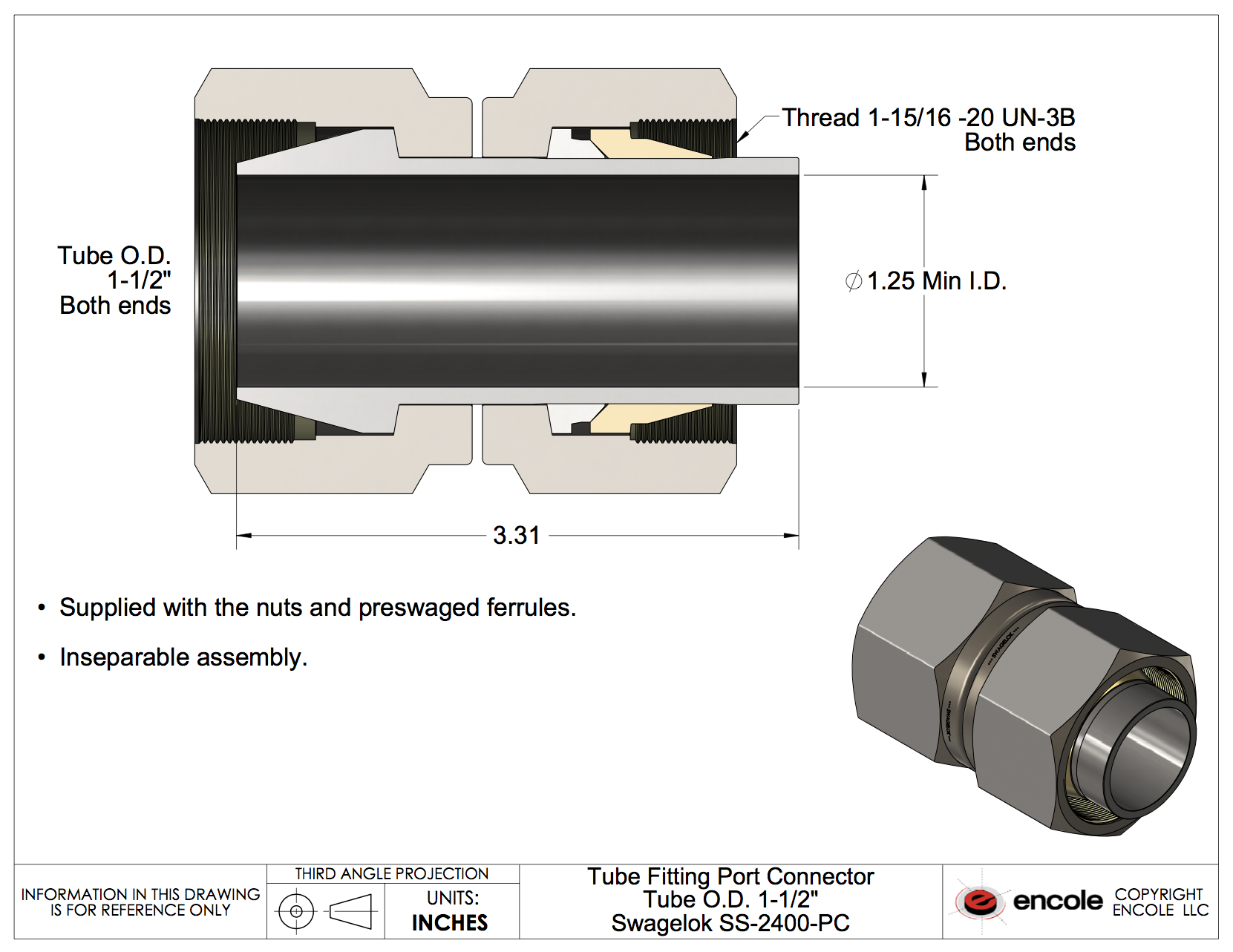

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 949E12011
Manufacturer's part number:
SS-2400-PC
SS-2400-PC
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
