Swagelok Co.
Female BSPP (Parallel Thread, RT) Tube Fitting Connector, Metric
Material: 316 SS, Tube OD: 6 mm, Connection 2: Female BSPP 1/4”, Packaging Option: Standard packaging

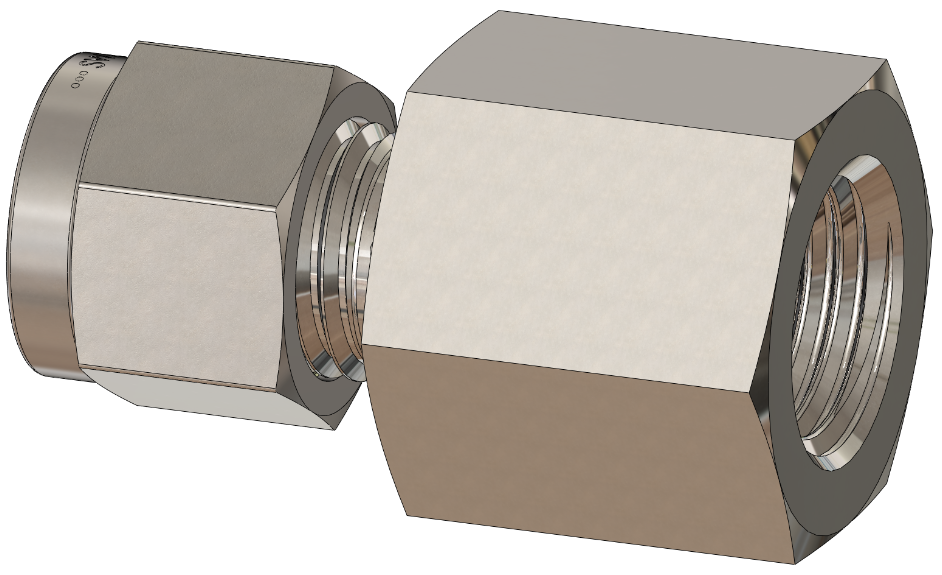

Female connector with standard size compression tube socket on one end and a female BSPP, (Parallel Thread) port on the other end. The BSPP conforms to the British Whitworth Standard.
Packaging Option:
·
Tube OD
6 mm
·
Connection 2
Female BSPP 1/4”
·
Material
316 SS
·
Material Standards
ASTM A276, ASME SA479, EN 1.14401
·
Thread Specifications
ISO 228, JIS B0202
·

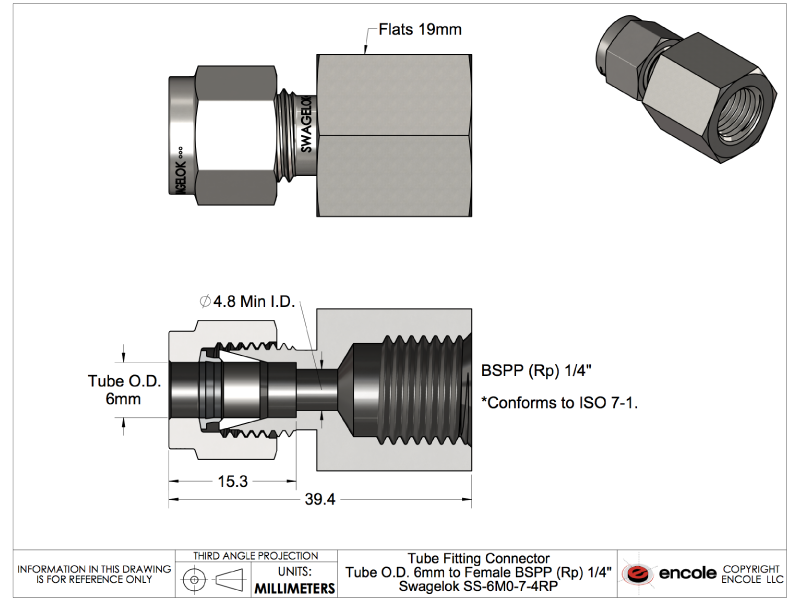

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 939E402
Manufacturer's part number:
SS-6M0-7-4RP
SS-6M0-7-4RP
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
