Swagelok Co.
Tube Fitting to NPT Bulkhead Connector
Material: 316 SS, Tube OD: 3/8”, Connection 2: NPT 1/4”, Packaging Option: Standard packaging
Bulkhead male connector fitting with a compression tube socket on one end, and NPT threads on the other end. This fitting is designed to go through a side wall of a plumbing cabinet, or a flat panel.
Packaging Option:
·
Tube OD
3/8”
·
Connection 2
NPT 1/4”
·
Material
316 SS
·
Material Standards
ASTM A276, ASME SA479, EN 1.14401
·
Thread Specifications
ASME B1.20.1, SAE AS71051
·

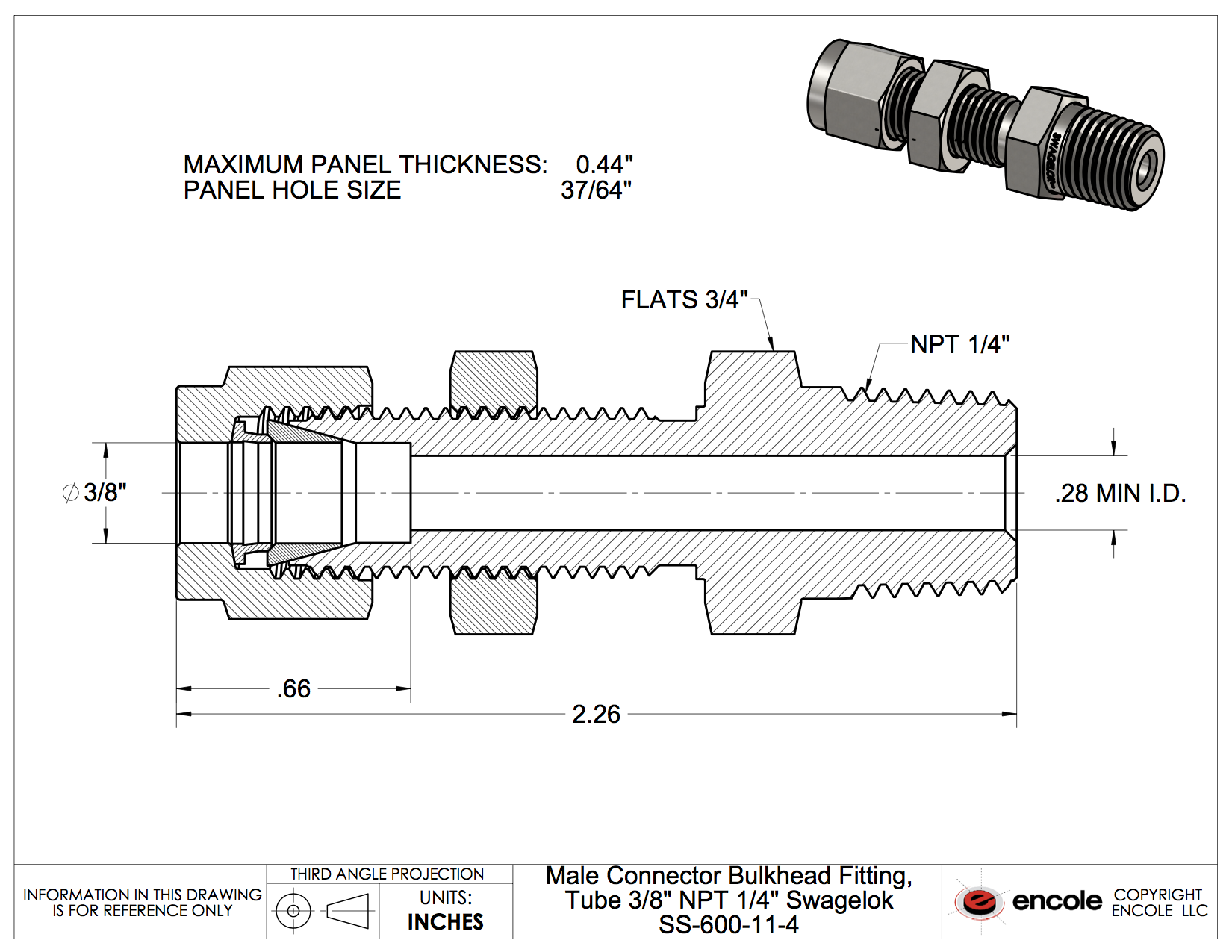

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 926E1304
Manufacturer's part number:
SS-600-11-4
SS-600-11-4
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
