Swagelok Co.

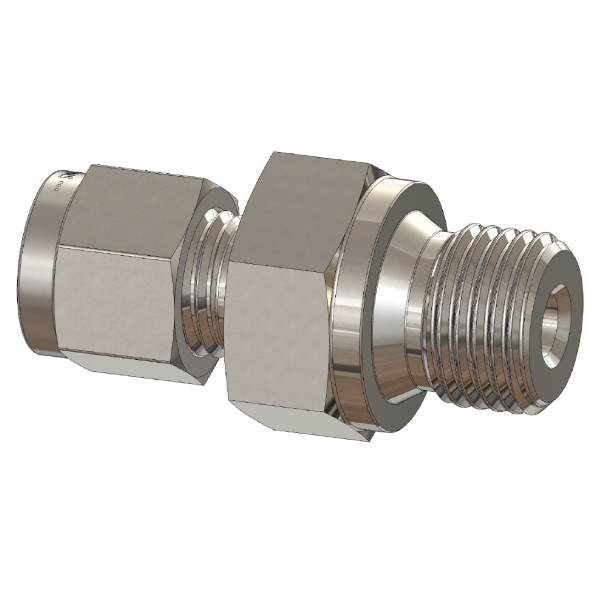

ISO/BSPP Parallel Thread Tube Fitting Connector
Material: 316 SS, Tube OD: 3/4”, Connection 2: BSPP 3/4”, Packaging Option: Standard packaging
Male connector tube fitting with British Whitworth Parallel, BSPP Thread on one end of the fitting.
Packaging Option:
·
Tube OD
3/4”
·
Connection 2
BSPP 3/4”
·
Material
316 SS
·
Material Standards
ASTM A276, ASME SA479, EN 1.14401
·
Thread Specifications
ISO 228, JIS B0202
·

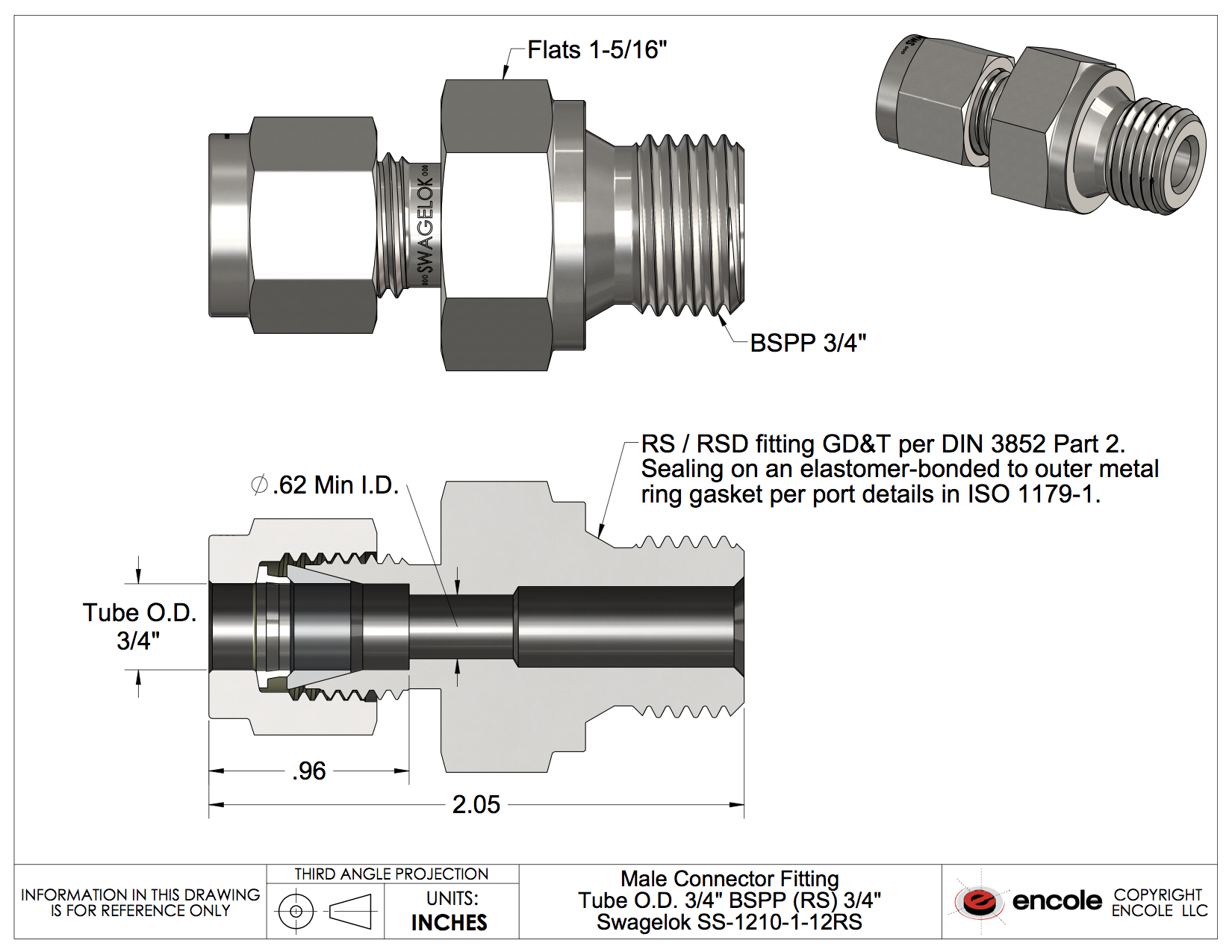

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 922E19016
Manufacturer's part number:
SS-1210-1-12RS
SS-1210-1-12RS
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
