Check-All Valve
Carbon Steel Housing Universal Low Pressure Check Valve, Female NPT
Inlet: 3/4” Female NPT, Housing Material: Carbon Steel, Cracking Pressure: 0.125 psi, Spring Material: 316 SS, Seal Material: Aflas, Spring Encapsulation Option: Standard
Check valve in a single-piece body construction. Housing is made from Carbon steel. The body of the valve is machined from a bar stock for a compact design. The valve is designed for a minimum pressure drop. Connections are female NPT threads conforming to ASME B1.20.1. This valve can be used a low pressure relief valve or vacuum breaker by choosing the desired spring settings. Once set, the cracking pressure remains consistent over the life of the valve without requiring maintenance. NOTE: carbon steel is raw and will rust when exposed to moisture. It should only be used in a dry gas or lubricant type application. If used in a water, steam, or wet gas type application (including air) it will rust and may become stuck open or closed.
Seal Material:
Spring Encapsulation Option:

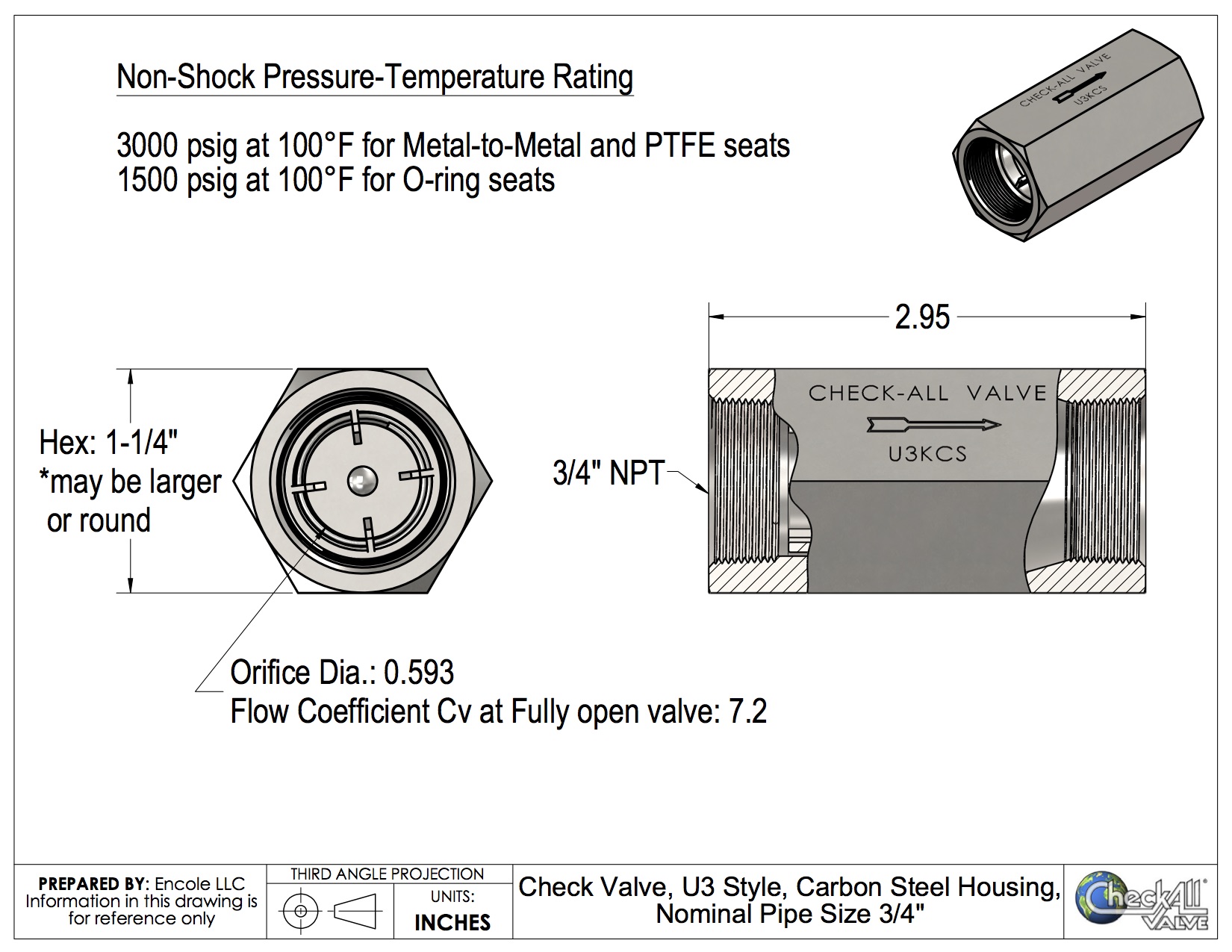

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
U3FCSAS.125SS
