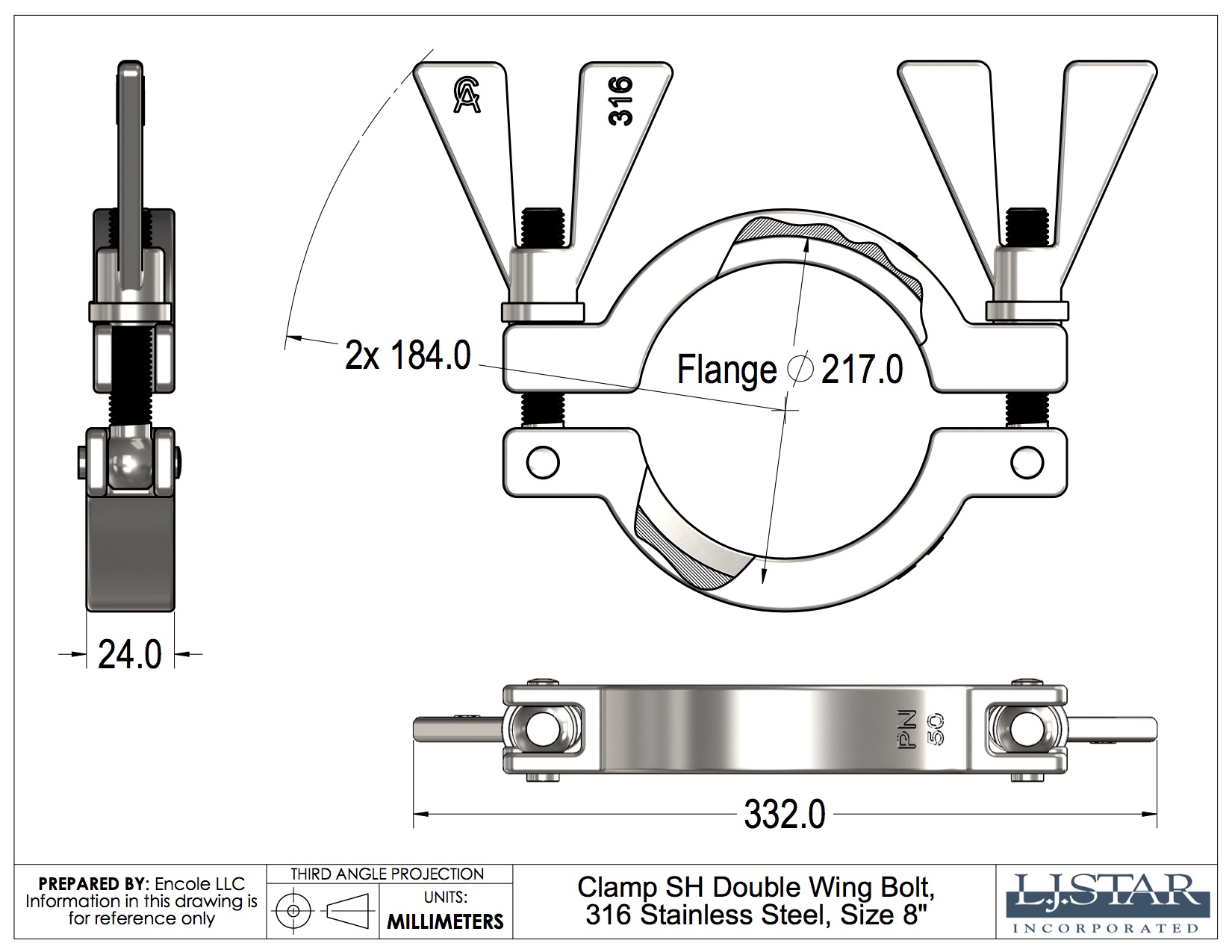

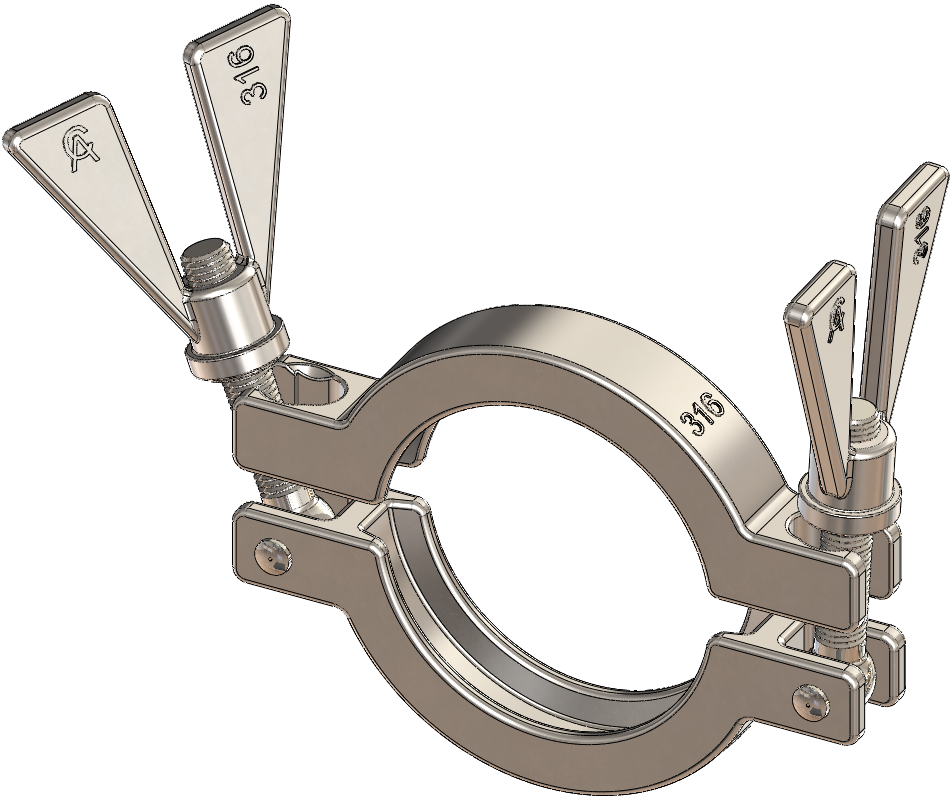

Hygienic Clamp, SH Type II, 316 Stainless Steel, Double Wing Nuts
Clamp Size: 8”
SH Type II Clamp, standard in 316 Stainless Steel are a double bolt design; the clamp comes standard with stainless steel wing nuts, one at each end. Similar to Type I clamps, SH Type II this clamp has a unique latch safety, where the gate-style openings combined with the stepped eyebolts prevent accidental bumping-off of the bolts.
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
C080.6.SH2
