Hygienic Clamp, SH Type I, Stainless Steel 316, Wing Nut
Clamp Size: 5”

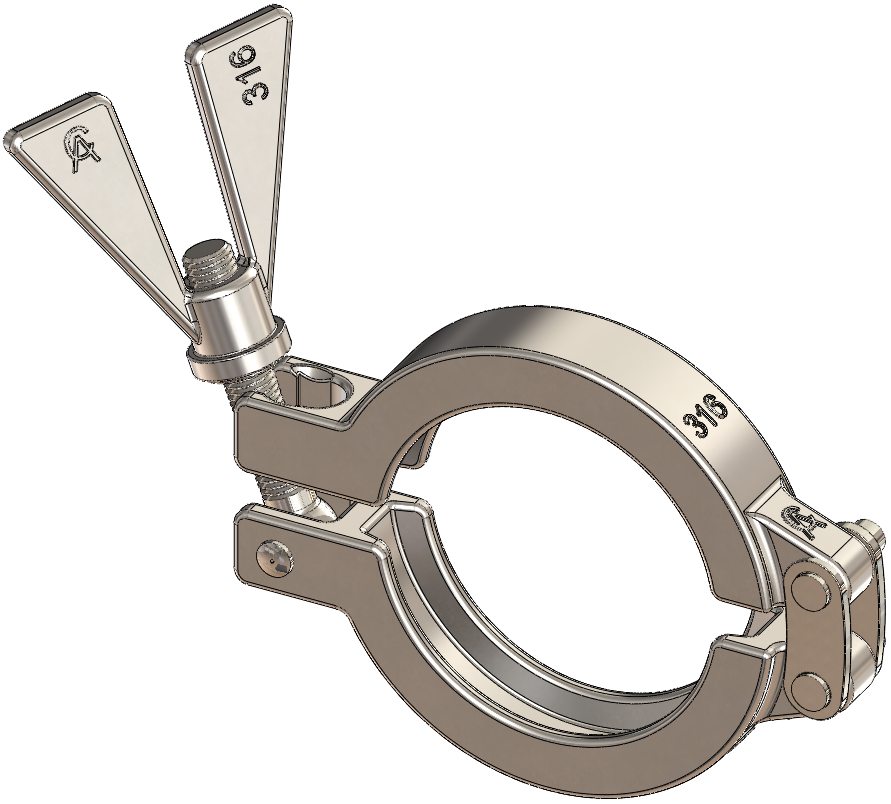

SH Type I Clamp, standard in 316 Stainless Steel, the most popular clamp for sanitary piping systems. This clamp incorporates a two-pin hinge allowing for a more uniform compression of the gasket. The clamp comes standard with a stainless steel wing nut. A unique feature of SH Type I clamps is their latch safety. The gate-style opening combined with the stepped eyebolt prevent accidental bumping-off of the bolt.

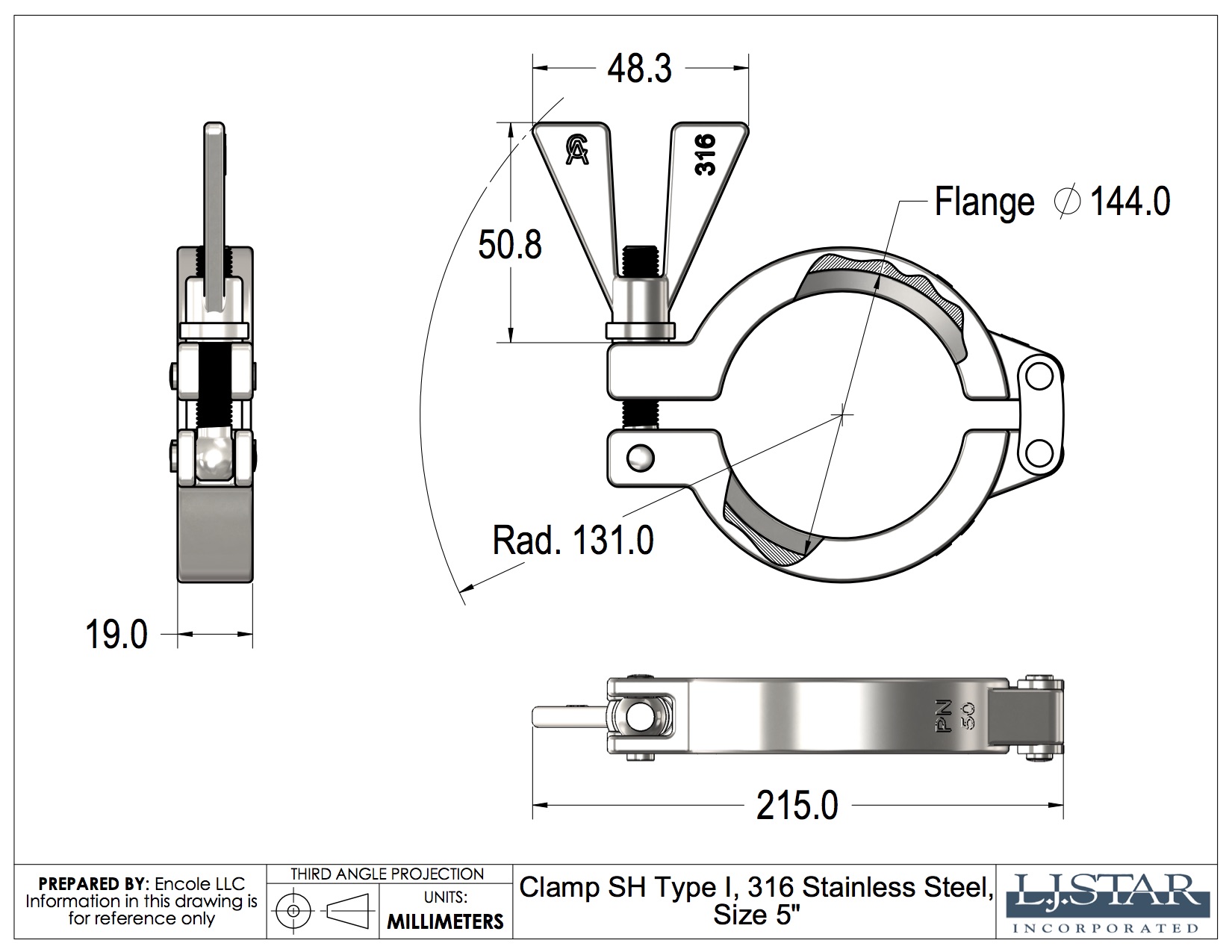

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
C050.6.SH1
