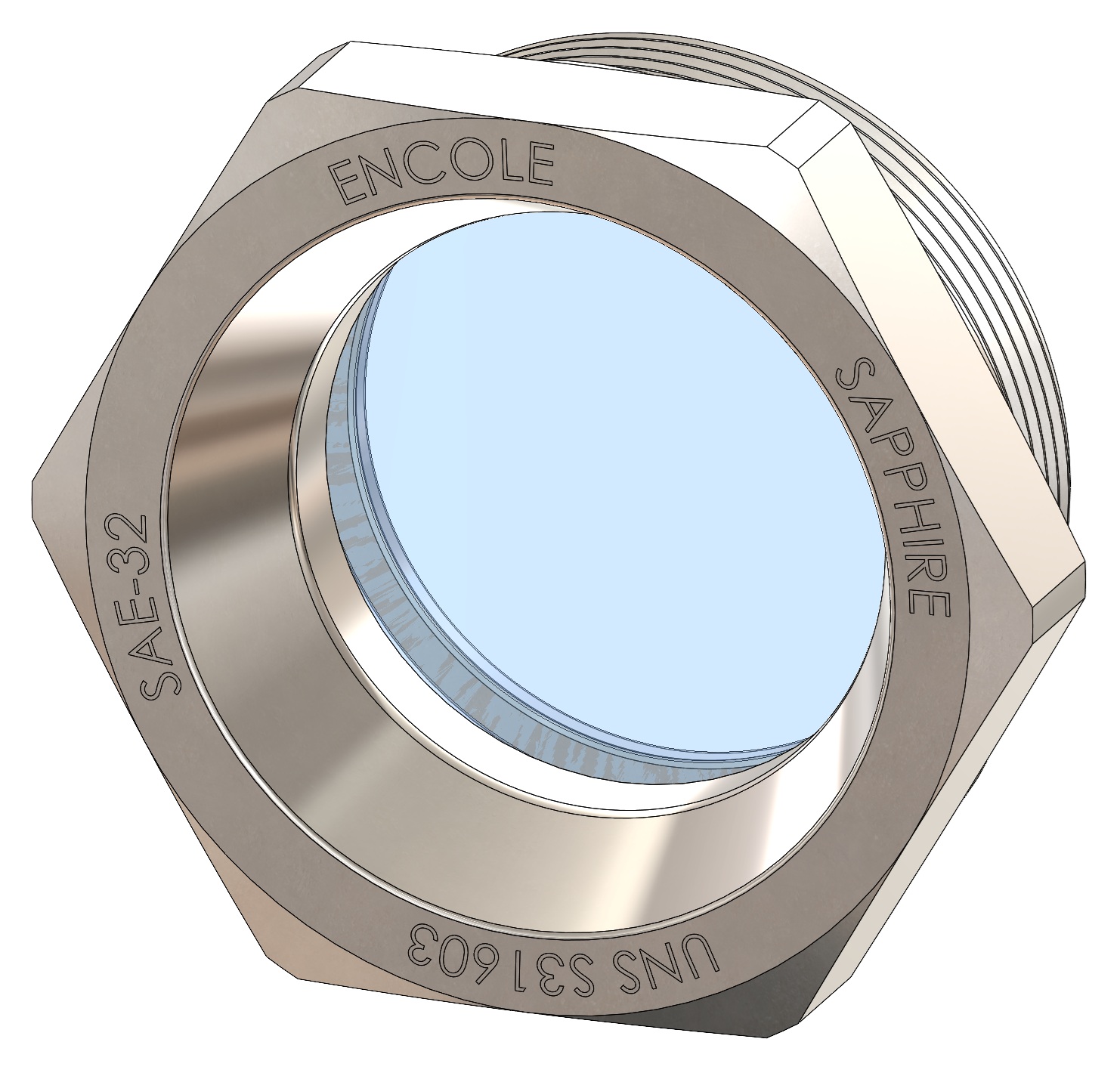

SAE Sight Glass, Smooth Pressure Side, Sapphire Window, 316L Stainless Steel Housing
SAE-Dash: SAE-32
Sight windows with SAE straight threads for sealing with an O-ring. Sapphire window is flush with the housing at the pressure side. This eliminates any turbulence if there is flow through the process vessel. Smooth transition between the window and housing eliminates space for trapping bubbles obscuring the view. These SAE sight glasses are designed for visual inspection, machine vision, laser sensors, in use with all common hydraulic oils, refrigerants, pharmaceutical processing equipment, paper & pulp plants, marine exterior, oil wells, feedwater heaters. 316L stainless steel housing has a finish of 32 RMS providing smooth surfaces reducing residue contaminants. C-Axis Sapphire window is sealed into the housing with a Viton, high durometer seal. The sight glass has a long working life under severe temperature swings and prolonged exposures to UV light. Required port to ISO 11926-1 (SAE J1926-1). Male boss conforms to: MS16142 for use with O-ring AS568A. The main O-ring is sold separately.

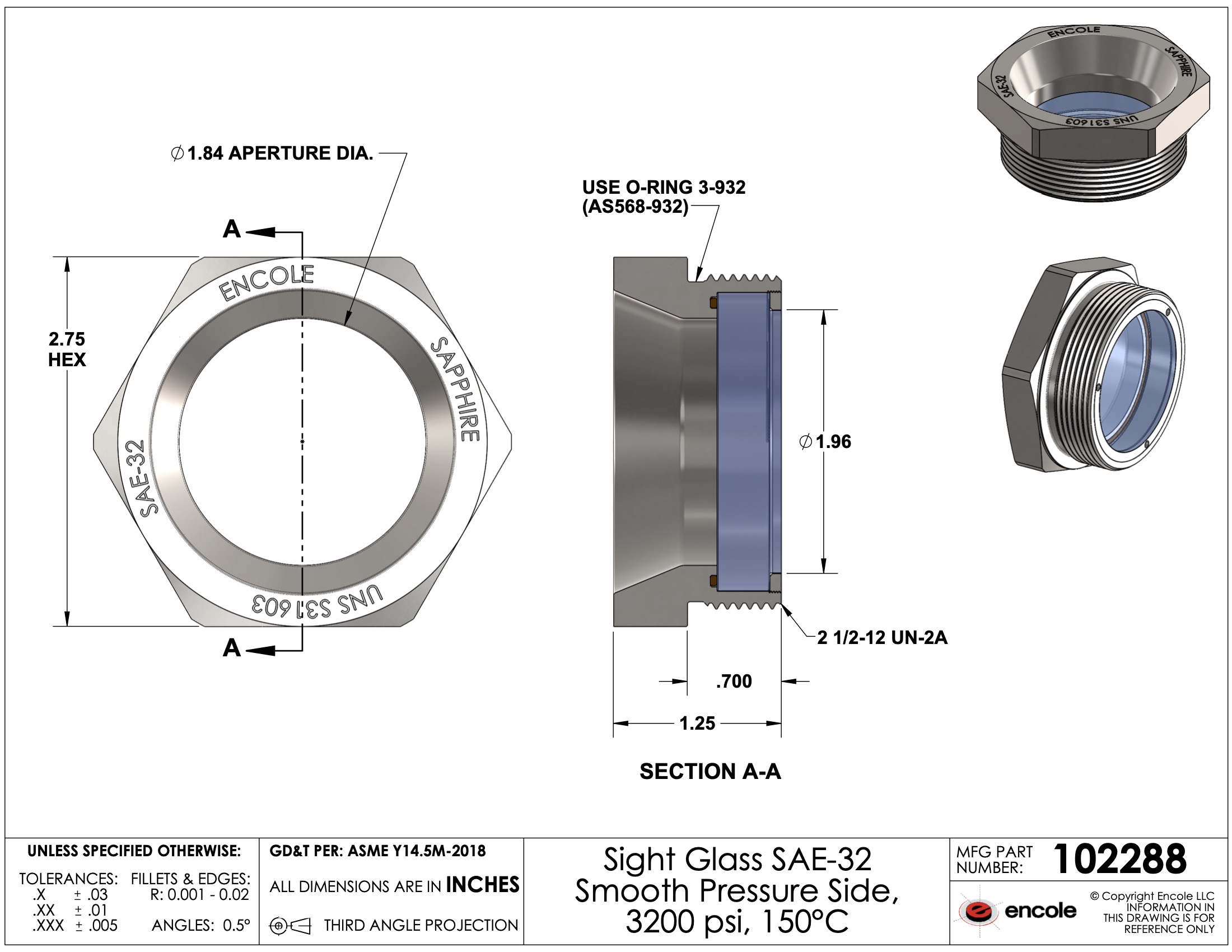

Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
