Swagelok Co.
Male to Female SAE Pipe Fitting Bushing
Material: 316 SS, Nominal Pipe Size: SAE-10, Connection 2: Female SAE-6 Port

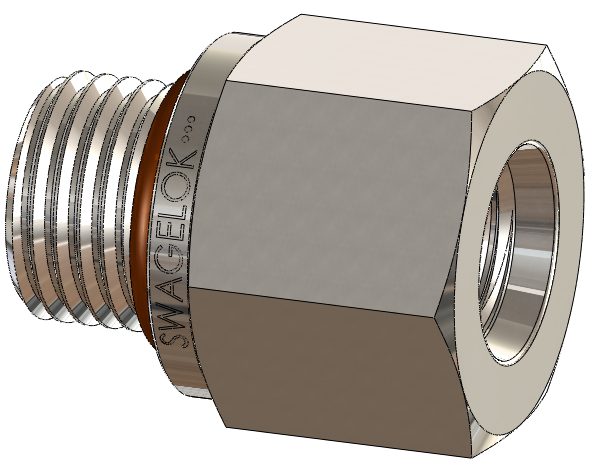

Swagelok® male SAE to female SAE port pipe fitting bushing. The male thread is larger than the female thread. SAE connections comply with SAE J514 Standard geometry.
·
Nominal Pipe Size
SAE-10
·
Connection 2
Female SAE-6 Port
·
Material
316 SS
·
Pressure Rating
3626 psi (249 bar)
·
Material Specification
ASTM A276, ASME SA479, EN 1.14401
·
O-Ring Material
Fluorocarbon FKM, 90-durometer.
·
Thread Specification
ASME B1.1
·
O-Ring Size
3-916

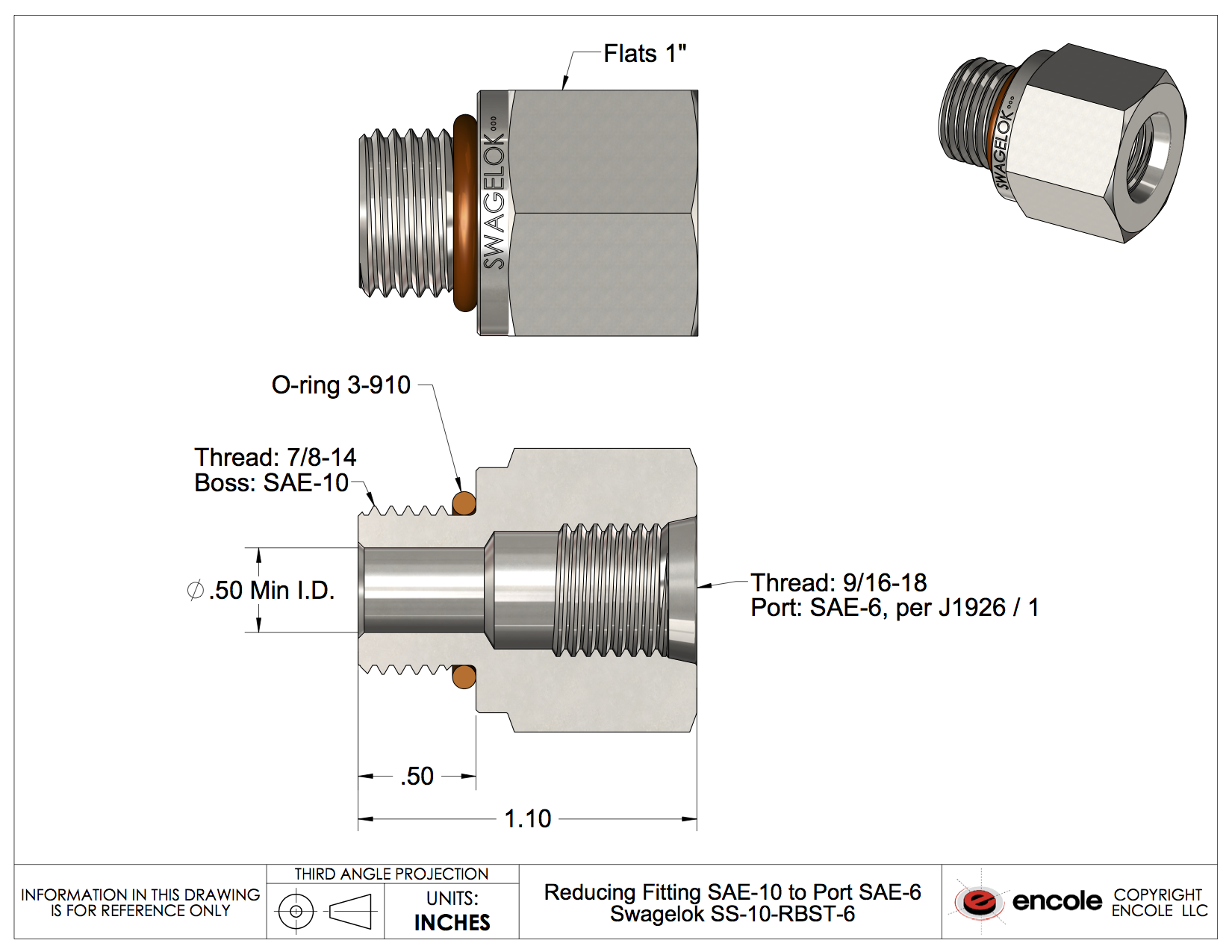

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1079E904
Manufacturer's part number:
SS-10-RBST-6
SS-10-RBST-6
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Co.
Sohon, OH
Tel.: 510.933.2500
