NPT to SAE J514 Pipe Fitting Adapter
Material: 316 SS, Nominal Pipe Size: SAE-16, Connection 2: NPT 1”

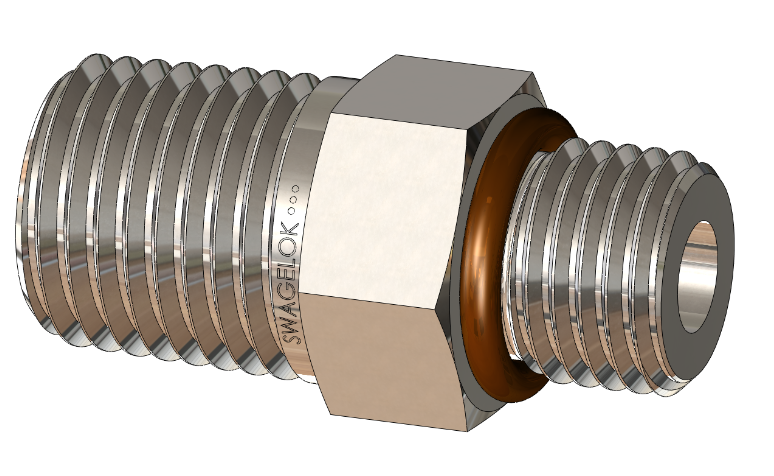

Swagelok® male NPT to SAE pipe fitting adapter. The SAE end conforms to the SAE J514 geometry designed to fit into J1926/1 port. Always use a pipe thread sealant for tapered threads. Swagelok® recommends SWAK(™) anaerobic or PTFE-FREE thread sealant, or PTFE tape.
·
Nominal Pipe Size
SAE-16
·
Connection 2
NPT 1”
·
Material
316 SS
·
Material Specification
ASTM A276, ASME SA479, EN 1.14401
·
O-Ring Material
O-ring material is durometer 90 fluorocarbon FKM.
·
SAE/MS Thread Specification
ASME B1.1
·
Pressure Rating
2900 psi (199 bar)
·
NPT Thread Specification
ASME B1.20.1, SAE AS71051

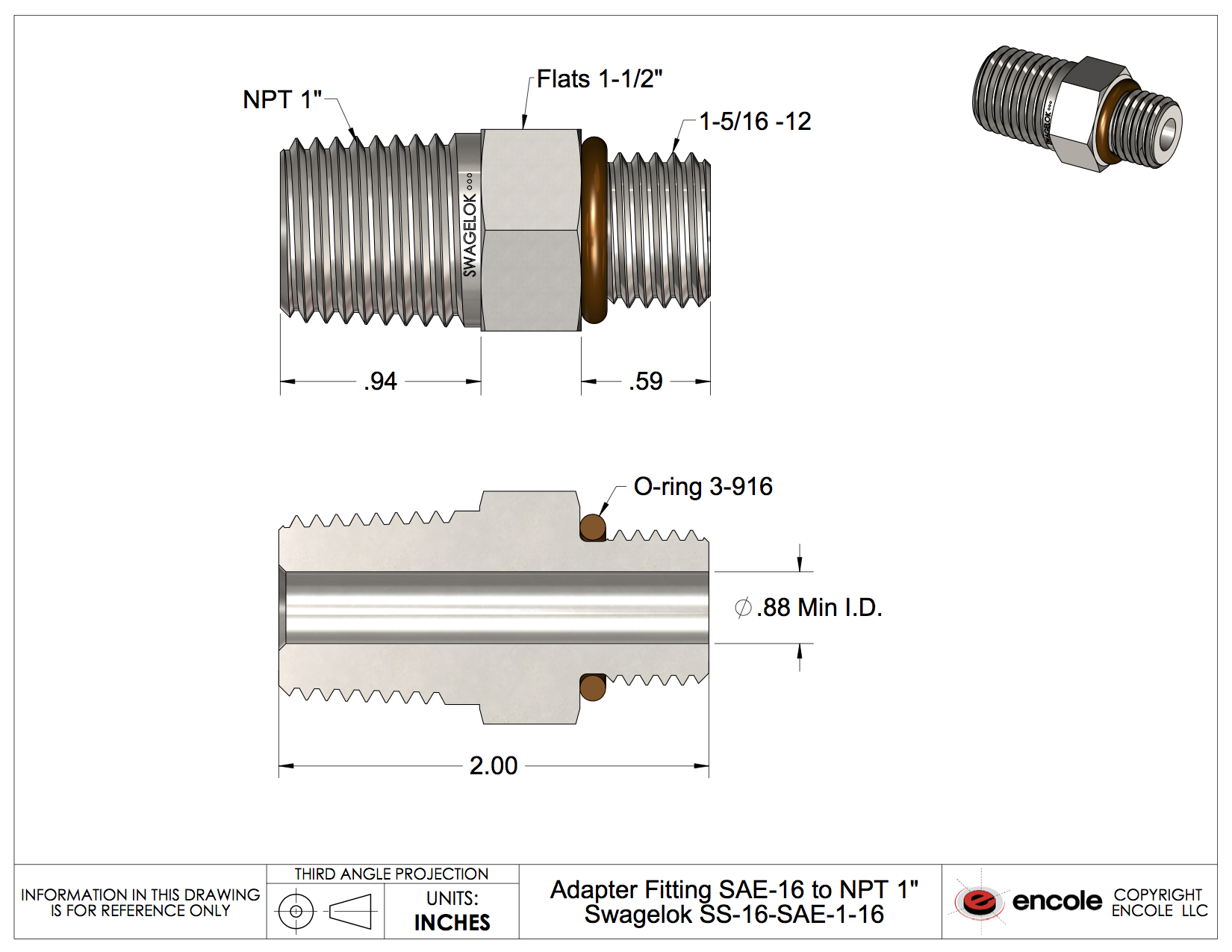

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1074E505
Manufacturer's part number:
SS-16-SAE-1-16
SS-16-SAE-1-16
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
