Swagelok Co.
Hex Long Nipple, NPT Pipe Fitting
Material: 316 SS, Nominal Pipe Size: NPT 3/4”, Length: 2.00”

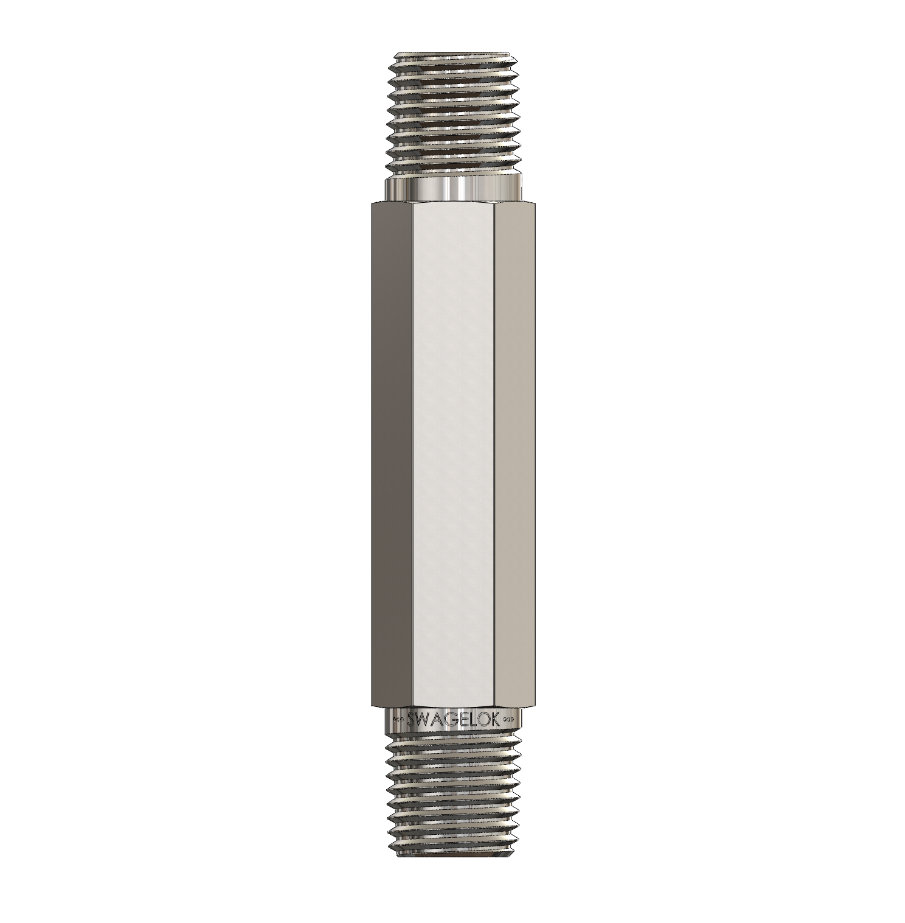

Swagelok® hex long nipple with identical male NPT ends. The fitting has a hex for wrench placement between the two ends. Choose the required length. Always use a pipe thread sealant for tapered threads. Swagelok® recommends SWAK(™) anaerobic or PTFE-FREE thread sealant, or PTFE tape.
·
Nominal Pipe Size
NPT 3/4”
·
Material
316 SS
·
Length
·
Material Specification
ASTM A276, ASME SA479, EN 1.14401
·
Pressure Rating
7300 psi (502 bar)
·
Thread Specification
ASME B1.20.1, SAE AS71051
The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1065E23019
Manufacturer's part number:
SS-12-HLN-2.00
SS-12-HLN-2.00
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Co.
Sohon, OH
Tel.: 510.933.2500
