Swagelok Co.
Female VCR® Coupling Fitting
Material: 316 SS, VCR Size: 1/4”, Cleaning Process: Standard process

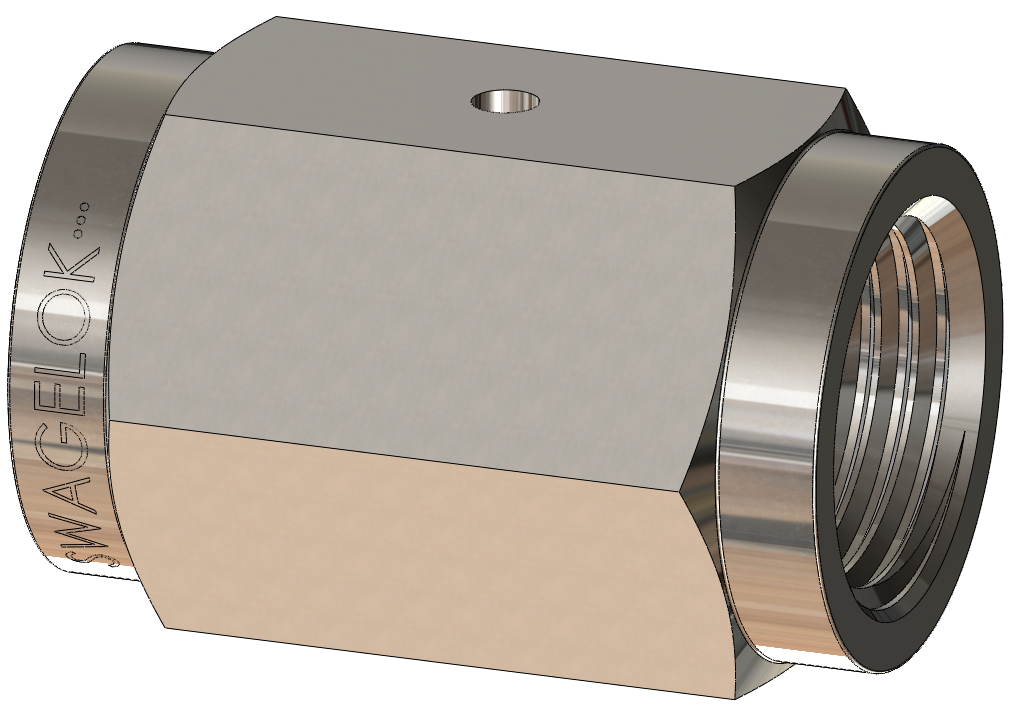

Swagelok® VCR union fitting with identical female VCR connections.
Cleaning Process:
·
VCR Size
1/4”
·
Material
316 SS
·
Material Specification
ASME SA479, ASTM A276
·
Cleaning Process Remarks
Standard Cleaning and Packaging (SC-10). Components are cleaned to remove oils, grease and loose particles.
·

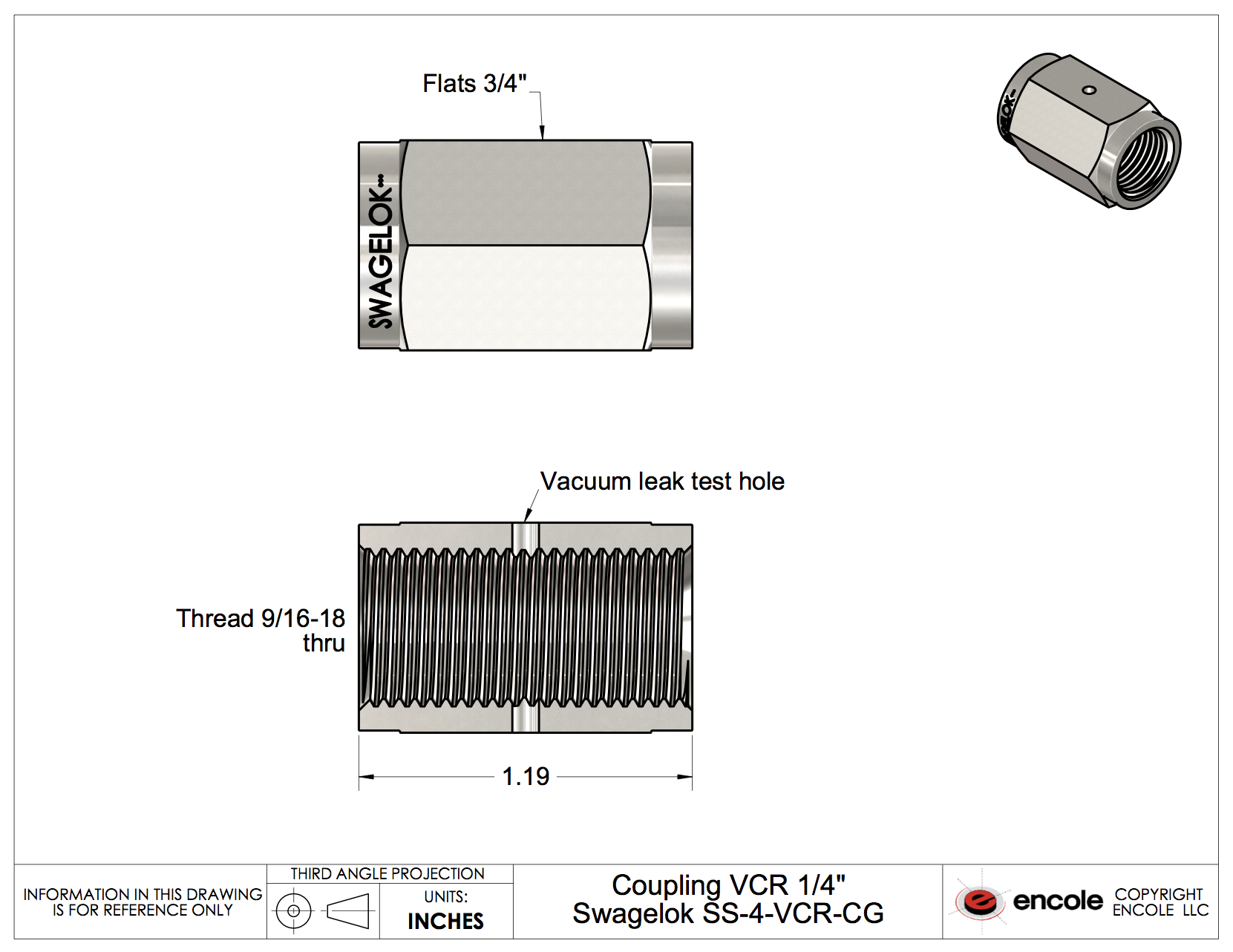

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1034E502
Manufacturer's part number:
SS-4-VCR-CG
SS-4-VCR-CG
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Co.
Sohon, OH
Tel.: 510.933.2500
