VCR® Tube Butt Weld Bulkhead Connector
Material: 316L VAR, VCR Size: 1/4”, Connection 2: Pipe Weld 3/8”, Length: 2.36”, Cleaning Process: Standard process

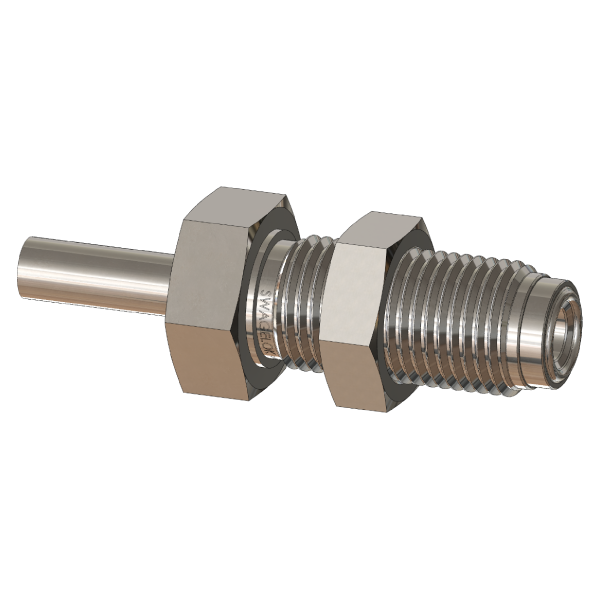

Swagelok® VCR bulkhead fitting with a tube butt weld on one end.
Cleaning Process:
·
VCR Size
1/4”
·
Connection 2
Pipe Weld 3/8”
·
Material
316L VAR
·
Length
2.36”
·
Material Specification
SEMI F20-0305 High Purity
·
Surface Finish
Roughness average of 10 microinch (0.25 micrometer) Ra.
·
High Flow Connector
Internal diameters are enlarged to allow for higher flow.
·
Cleaning Process Remarks
Standard Cleaning and Packaging (SC-10). Components are cleaned to remove oils, grease and loose particles.
·

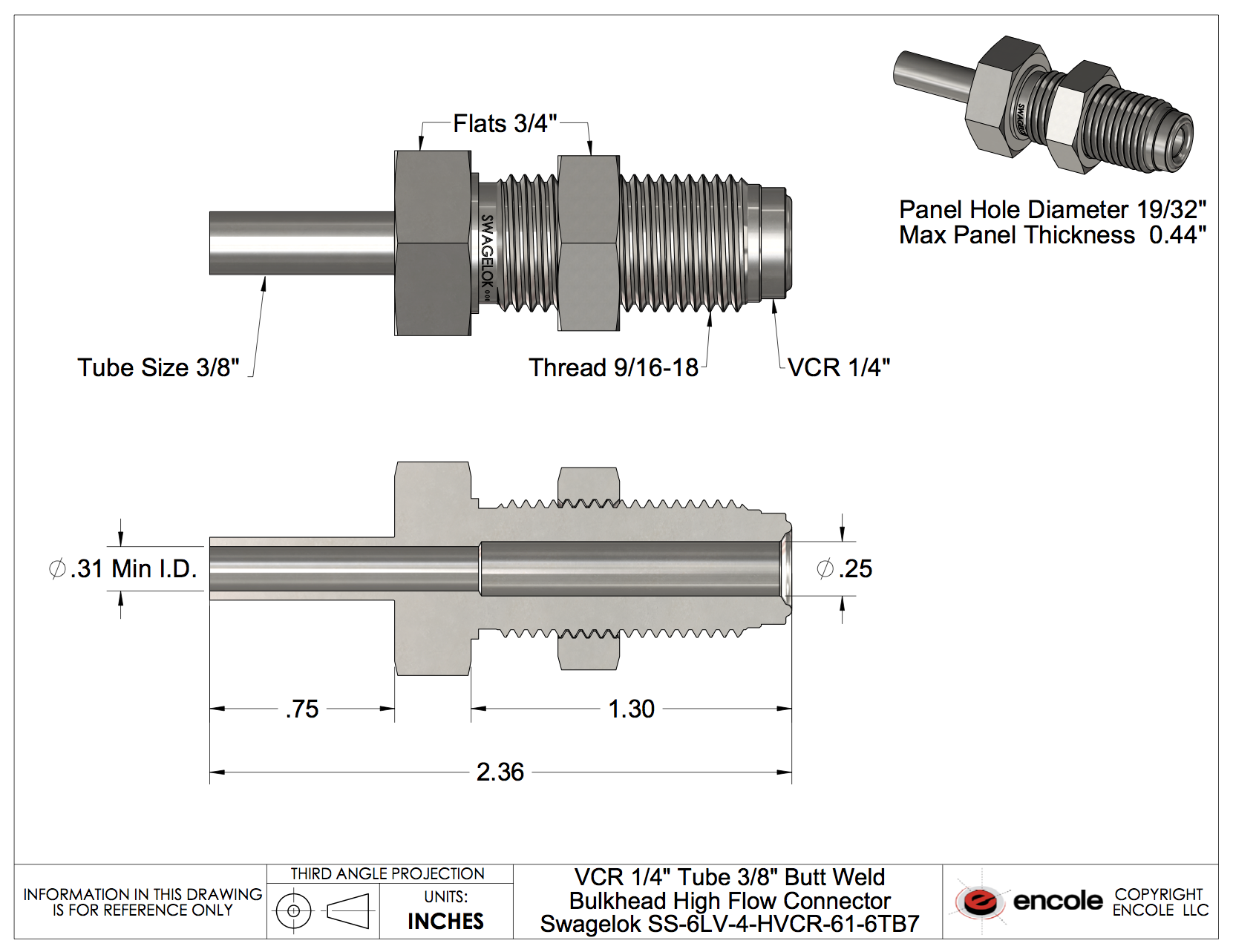

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1033E303
Manufacturer's part number:
6LV-4-HVCR-61-6TB7
6LV-4-HVCR-61-6TB7
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
