Swagelok Co.

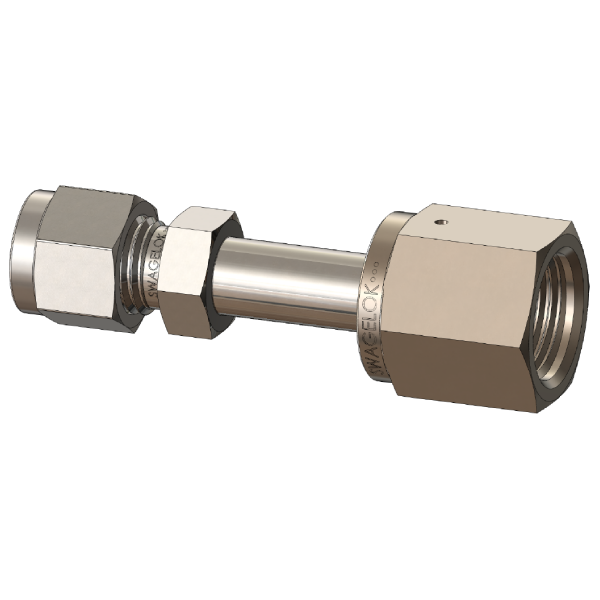

VCR® Compression Tube Fitting
Material: 316 SS, VCR Size: 1/4”, Connection 2: Tube OD 1/8”, Cleaning Process: Standard process
Swagelok® VCR fitting with a compression tube socket, with ferrules and a nut on one end. During installation of the VCR mating components the fitting must remain stationary. This fitting can be assembled only to glands with rotating male of female threaded nut.
Cleaning Process:
·
VCR Size
1/4”
·
Connection 2
Tube OD 1/8”
·
Material
316 SS
·
Material Specification
ASME SA479, ASTM A276
·
Internal Diameter Remarks
May contain internal diameter transitions.
·
Cleaning Process Remarks
Standard Cleaning and Packaging (SC-10). Components are cleaned to remove oils, grease and loose particles.
·

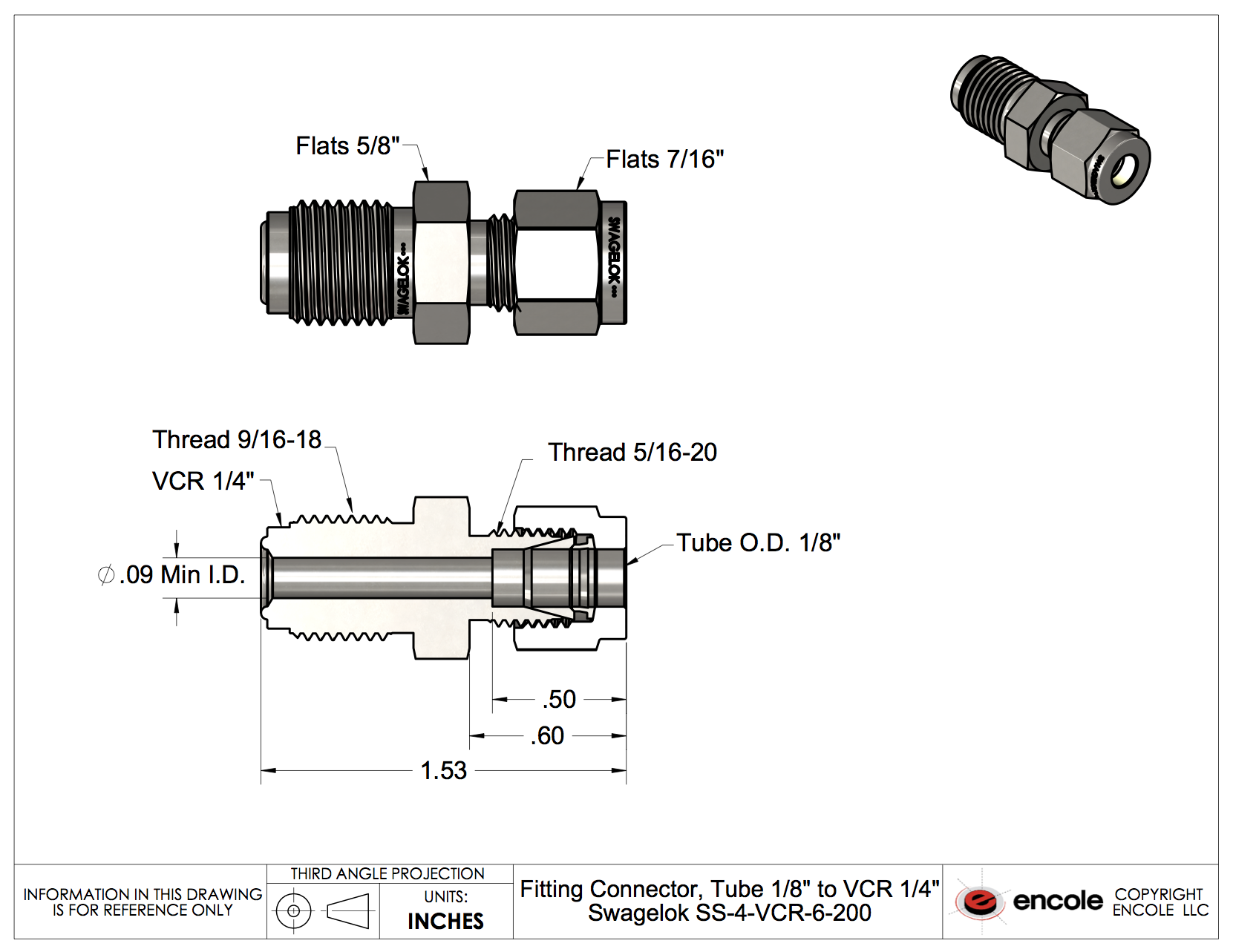

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1028E401
Manufacturer's part number:
SS-4-VCR-6-200
SS-4-VCR-6-200
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
