Swagelok Co.
VCR® Fitting SAE Connector
Material: 316 SS, VCR Size: 1/2”, VCR Size: 1/2”, Connection 2: SAE-10

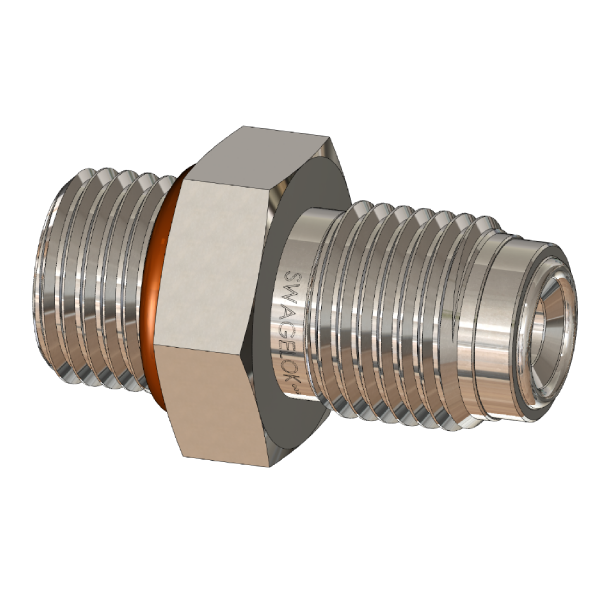

Swagelok® VCR fitting with a SAE boss with straight threads on one end. The SAE complies with SAE J514 geometry, fits into J1926-1 port. During installation of the VCR mating components the fitting must remain stationary. This fitting can be assembled only to glands with rotating male of female threaded nut.
·
VCR Size
1/2”
·
Connection 2
SAE-10
·
Material
316 SS
·
Material Specification
ASME SA479, ASTM A276
·
O-Ring
Fluorocarbon FKM O-ring is standard.

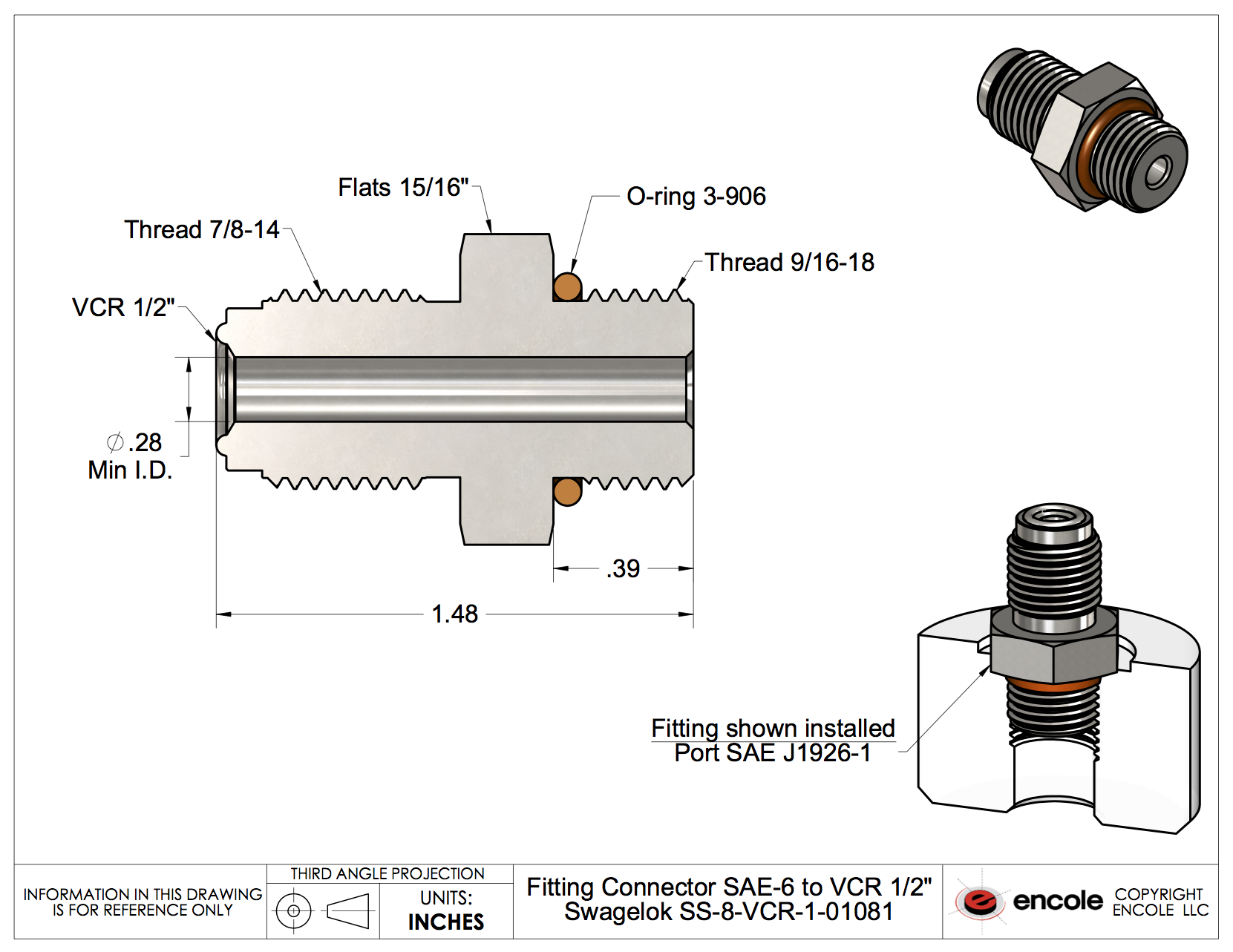

The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1026E303
Manufacturer's part number:
SS-8-VCR-1-01081
SS-8-VCR-1-01081
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
