Swagelok Co.

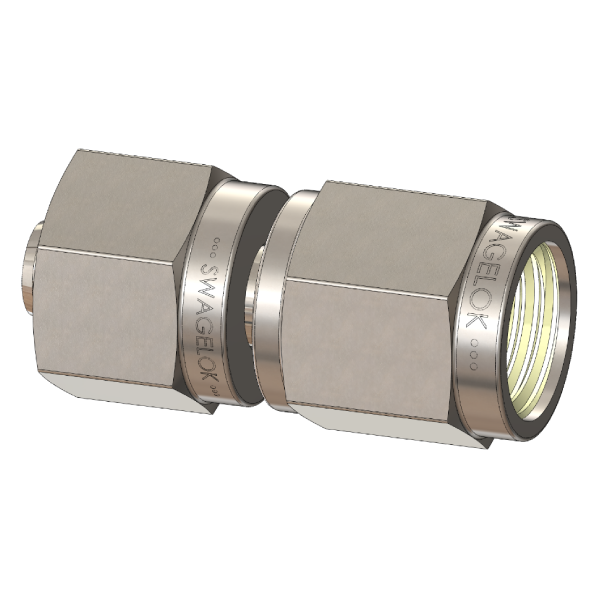

AN Female Flare Tube Fitting Adapter
Material: 316 SS, Tube OD: 1/8”, Connection 2: AN-2 Female Tube 1/8”, Packaging Option: Standard packaging
Tube fitting adapter from a compression tube stub to AN flare end with female threads.
Packaging Option:
·
Tube OD
1/8”
·
Connection 2
AN-2 Female Tube 1/8”
·
Material
316 SS
·
Material Standards
ASTM A276, ASME SA479, EN 1.14401
·
The information in this Drawing and 3-D models is provided for reference only.
Details
Product Drawings and CAD Models Disclaimer
Manufacturing processes and resulting tolerances may result in variations in the specifications provided. Many manufacturers consider their GD&T proprietary and do not provide this to Encole. While we believe the information to be generally correct, it is subject to change without notice and is not guaranteed. Drawings and CAD models are prepared by the Original Manufacturers or CAD expert contibutors or Encole staff.
Part number: 1004E601
Manufacturer's part number:
SS-200-A-2ANF
SS-200-A-2ANF
Manufacturer:
Swagelok Co.
Swagelok Co.
Price: $ Contact Manufacturer
Supplier:
Swagelok Inc.
Sohon, OH
Tel.: 510.933.2500
