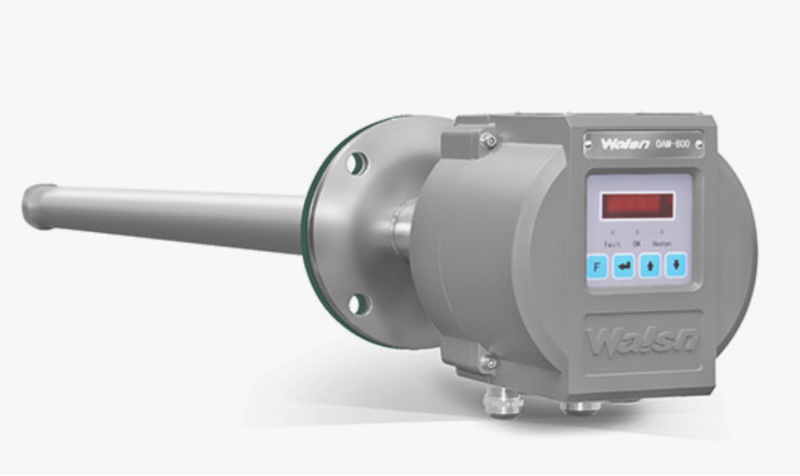

Oxygen Analyzer for Continuous Monitoring of Boilers and Furnaces

Stand-alone oxygen analyzer, directly in the path of flue gases.

OAM-800, OAM-800-R and OAM-802 are ideal for continuously measuring the oxygen concentration of flue gas in boilers and furnaces. Walsn OAM is a stand-alone oxygen analyzer, which allows the zirconium oxide cell directly placed into the stream of flue gases.

The direct insertion detecting method is able to display the on-site data and fault information. Its features include high accuracy, fast measurement and low maintenance. The detecting results of oxygen concentration from OAM-800, OAM-800-R and OAM-802 will be used for the control system or the boiler operators, which will assist to adjust the boiler's operation as well as the fuel/air ratio in order to achieve the maximum combustion efficiency.

Applications

Oxygen analyzers are used to test oxygen content in flue gases, which can be applied to the following situations:

• BOILER：Power Plant Boilers, Marine Boilers, Recycle Gas Boilers.
• FURNACES：Heat Treatment Furnaces, Glass Firing Furnaces, Cracking Furnaces.
• ROTARY KILN：Ore Sintering Kiln, Cement Firing Kiln, Aluminum Ore Processing Sintering Kiln.

Product page: Walsh's product line of oxygen analyzers
